Original Ultrasound Probe

GE RIC5-9W-RS Realtime 4D microconvex endocavitary ultrasound probe

Lead time:2-4 days
Warranty:12 months
Description

4D microconvex GE RIC5-9W-RS Realtime endocavitary ultrasound probe/ Animal ultrasound


1. Type: micro convex
2. Frequency: 5-9 MHz
3. Compatible system: Voluson i, Voluson e, Voluson S6/S8
4. Application:  OB/GYN, endocavity, urology
5. Feature: 3D/4D imaging
6. Condition: New original and full-tested
7. With 12 months warranty

Other GE probes we can offer:


Brand Model Compatible system

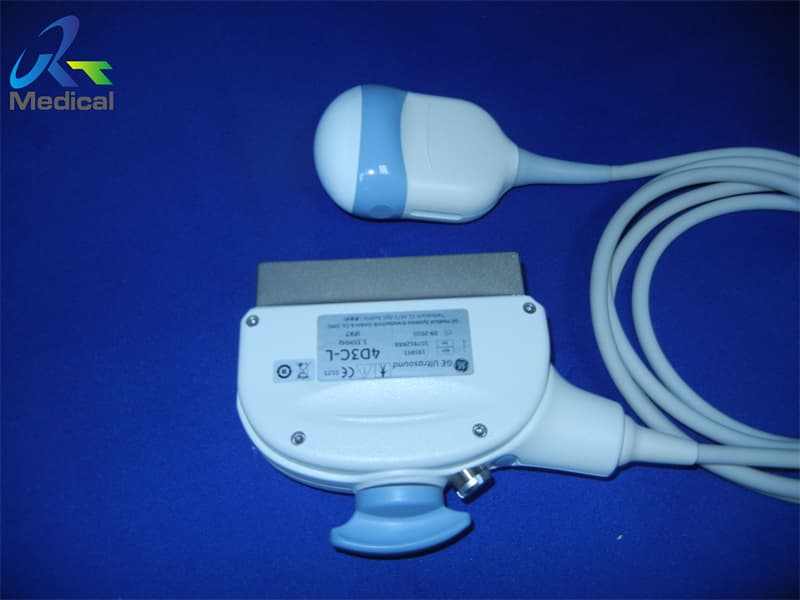

GE 4D3C-L Logiq 9/ Logiq A5/ Logiq P5/ Logiq S6
GE 4V-D Vivid E9
GE 4S  Logiq and Vivid series
GE 5S pediatric cardiac
GE 5S-RS Vivid q/ Vivid i/Vivid S5/Vivid S6
GE 6.5C-RC Vivid q/ Vivid i
GE 7L Logiq and Vivid series
GE 7L-RC Logiq C2/ C5/ Logiq Premium
GE 739L Logiq 500 Pro/Vivid 3/Logiq 400 MD/Logiq 500 MD
GE 7S  Logiq9/ Logiq 7/ Logiq S6/ Logiq 5/ Logiq 3 /Vivid 7/Vivid 3
GE 7.5L-RC Logiq C2/Logiq C3/Logiq C5/Logiq Premium
GE 8C  Logiq & Vivid series
GE 8C-RS Voluson i/ Voluson e/ Logiq i/ Logiqbook XP/ Logiqbook/ Vivid i (from rev. 6.1.0)/ Vivid S5
GE 8L-RS  Logiq e/ Vivid e/ Vivid i and Logiq Book XP
GE 9L Vivid 7 Pro/Vivid 3/Logiq 9/ Logiq 7/Logiq 5/Logiq 3/ Logiq 400
GE 9L-D Voluson E6/Voluson E8/Vivid E9

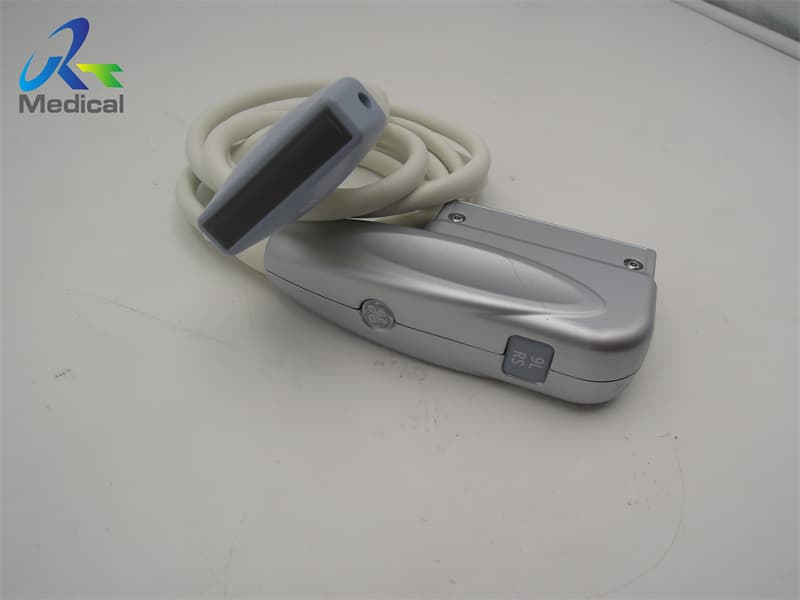

GE 9L-RS logiq e/ vivid e/ vivid I/ vivid q/ vivid s5/ vivid s6
GE 10Lb-RS Logiq book


Knowledge point:

Mechanical probe


A motor drives a rotating head whose shaft is located at the focal point of the probe surface to rotate in one direction. Two focusing transducers are embedded in the rotating head. When the transducer rotates to face the reflector, it emits ultrasonic pulses. After parabolic launching, a row of parallel linear scanning beams are formed, realizing mechanical scanning. Its advantages are that the sector-shaped mechanical scanning probe has a large field of view for far-area exploration, a small contact area for acoustic coupling with the human body, and the same tangential and lateral resolution. It is suitable for ultrasound examination of heart, small organs, ophthalmology, lumen ducts and abdominal organs.
