Ultrasound Biopsy Needle Guide

Ultrasound Biopsy Needle Guides for Philips ClearVue L12-4

Lead time: 2-4 days
Warranty: 90 days
Description

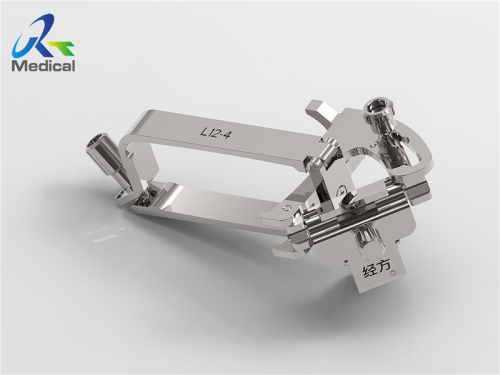

 Ultrasound Biopsy Needle Guides for Philips ClearVue L12-4

1.Type:Three angles, accepts 14-22 Gauge instruments
2.Fits:Philips ClearVue L12-4
3.Features:stainless steel, reusable, easy to clean and sterilize
4.Professional new one from Chinese factory, precision manufacturing
5.Qualified one in excellent working condition
6.Provide 90 days warranty


Other
Ultrasound Biopsy Needle Guides for Philips ClearVue L12-4


Brand Model Angle Applicative needle
Philips  C5-1 four angles 14-22G
Philips  C5-2 single angle 1618G
Philips  C5-2 four angles 14-22G
Philips  C8-4vC9-3vC10-3v single angle 161718G
Philips  C9-5ec single angle 161718G
Philips  ClearVue C5-2 four angles 14-22G
Philips  ClearVue C9-4V single angle 161718G
Philips  ClearVue L12-4 three angles 14-22G
Philips  ClearVue S4-1 three angles 14-22G
Philips  Ergo S4-2S5-1S5-2 three angles 14-22G
Philips  L12-3 single angle 14-22G
Philips  L12-5 45-90° 161718G


Knowledge point:

3D

In the ultrasonic detector, the detected 3Dobject image is displayed as a 3Ddisplay method by plane display. Three dimensional reconstruction refers to the use of ultra wide-band technology, on the basis of a large number of high-definition two-dimensional image accurate data provided, to make the collected image signal data characteristic and systematic, so as to form a 3Ddisplay. Its unique control signal function will make a series of 3Dimages fully displayed on the screen.

3D image reconstruction

3D image reconstruction is a hot spot in ultrasound image processing and has become a development trend of ultrasound imaging. The first 3Dultrasound imaging commercial device uses mechanical scanning probes that oscillate in perpendicular directions to collect data of interest within 3 seconds, and perform image reconstruction to generate sagittal, coronal, and cross-sectional images. These planes can be adjusted within the range of ultrasound information capacity, and multiple continuous images can be seen.
There are many problems to be solved in 3Dultrasound imaging, including data acquisition methods, real-time image reconstruction, and clinical reference value. At present, four data collection methods have emerged: parallel scanning, rotating scanning, sector scanning, and free-hand Scanning. The most eye-catching 3Dultrasound imaging is real-time 3Dimaging. The key to real-time 3Dimaging is to use parallel data processing and shorten data acquisition time. Acoustic pulses are emited in several directions at the same time, and simultaneously acquires and processes multiple sound beam information of the scan line, which obviously increases the complexity of the ultrasound imaging system.
