Hitachi / Fujifilm Aloka Ultrasound Board-Level Symptoms: A Decision Path for ARIETTA, Prosound, Alpha and HI VISION Repairs

Introduction: Structured Board Isolation for Hitachi, Fujifilm, and Aloka Ultrasound Platforms

Diagnostic ultrasound consoles built on Aloka, Hitachi, and Fujifilm technology represent one of the most widely deployed platforms in global healthcare. From legacy workhorses like the Aloka SSD-3500 and Prosound Alpha series (Alpha 6, Alpha 7, Alpha 10) to the Hitachi EUB series, HI VISION systems (Preirus, Avius, Ascendus), and the flagship ARIETTA family (ARIETTA 50, 60, 65, 70, 750, 850, x10), these systems combine multi-channel digital beamforming, complex power conversion, and host computing modules.

However, when a system experiences electronic failure, biomedical equipment technicians (BMETs) and independent service engineers face a double diagnostic challenge: isolating the physical hardware fault across complex circuit boards, and resolving brand-label confusion caused by corporate acquisition history. A field technician seeking a replacement board for a Fujifilm-branded ARIETTA 60 may find identical OEM hardware carrying a Hitachi or Aloka part label from earlier production years.

For biomedical engineering departments, multi-brand service providers, and medical equipment refurbishers, component-level repair and targeted board replacement offer a high-reliability, cost-effective alternative to OEM full-assembly replacements. By establishing systematic symptom-to-board mapping and verifying exact EP-series or CU-series part numbers, service teams can eliminate trial-and-error part swapping, reduce downtime, and safely restore consoles to factory specifications.

For sister diagnostic decision paths covering other major multi-brand console lines, biomedical engineers can reference our guides for GE ultrasound board-level symptoms, Philips iU22/EPIQ board symptom isolation, and Siemens Acuson S2000/Sequoia board symptom isolation.

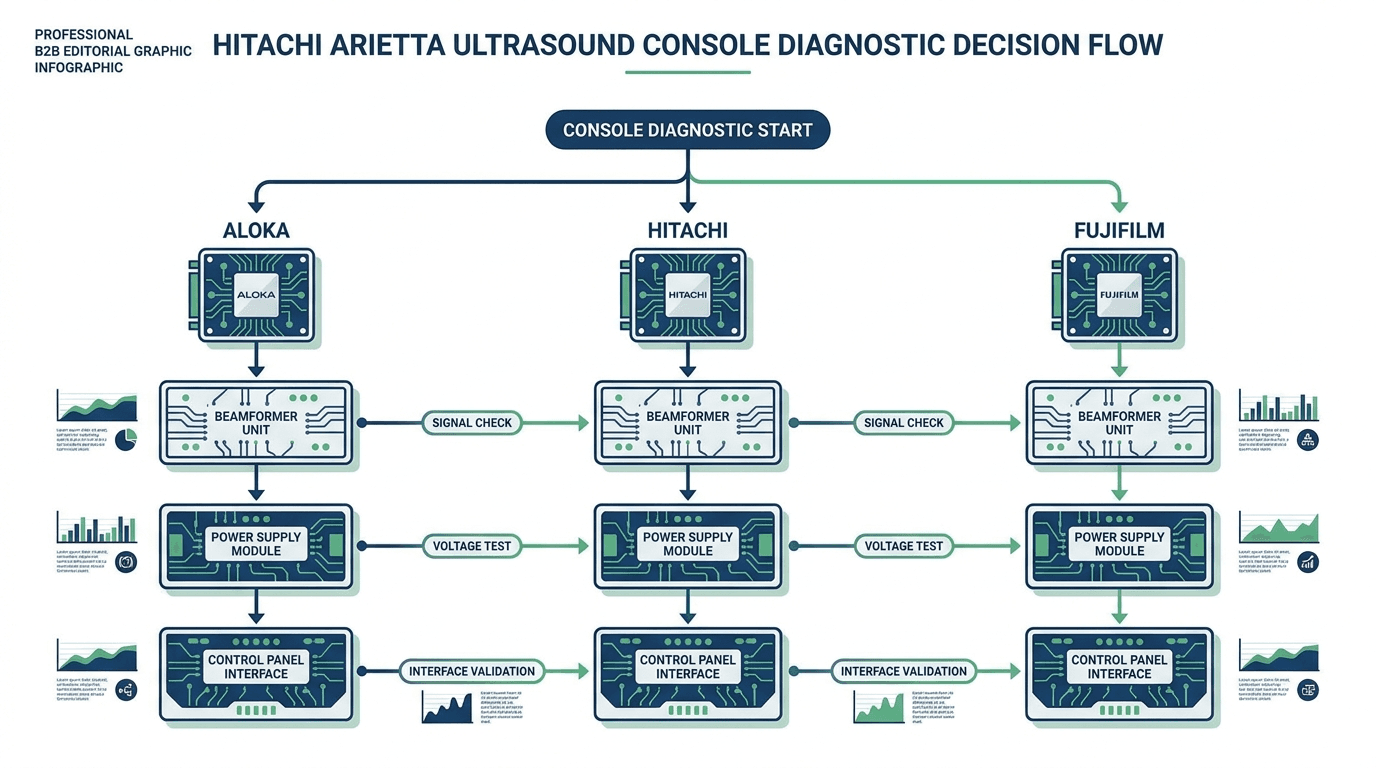

Which Hitachi/Fujifilm/Aloka board family does my symptom point to (ARIETTA, Prosound/Alpha, F-series, HI VISION)?

Before opening system chassis covers or placing component orders, service engineers should classify observed console behavior into one of three primary functional hardware zones: (1) Image Path & Transmit/Receive Front-End, (2) Power Conversion & Voltage Regulation Chain, or (3) Host Processing, Controller, and Operator User Interface Subsystem.

Circuit failures across Hitachi, Fujifilm, and Aloka ultrasound platforms exhibit distinct physical degradation mechanisms: high-voltage pulsers and digital beamformer ICs experience thermal stress during intensive color flow and CW Doppler modes; main power supply modules suffer capacitor drying and power switch breakdown; and control panel trackballs and touch digitizers undergo mechanical wear and fluid ingress.

Table 1 correlates observed clinical and hardware symptoms across ARIETTA, Prosound Alpha, F-series, and HI VISION consoles directly to suspected functional sub-systems, primary candidate board assemblies, and verified manufacturer part numbers from Rongtao Medical's catalog ground truth ⁸:

Why does the same ARIETTA part appear under Aloka, Hitachi and Fujifilm labels — and does the brand name change compatibility?

A major source of confusion for biomedical engineers sourcing replacement parts for ARIETTA, Prosound, and Alpha consoles is the corporate lineage of the manufacturing entities. Over a 15-year period, this ultrasound technology portfolio underwent two major corporate transitions:

1. 2010 Aloka-Hitachi Merger: Aloka Co., Ltd. (a pioneer in medical ultrasound founded in Japan) became a subsidiary of Hitachi Medical Corporation, eventually forming Hitachi Aloka Medical, Ltd. in 2011.
2. March 31, 2021 Fujifilm Acquisition: FUJIFILM Corporation completed its acquisition of Hitachi's diagnostic imaging-related business (including CT, MRI, and ultrasound) for approximately JPY 179 billion (~EUR 1.3 billion) ³. Effective July 1, 2021, Hitachi Healthcare Americas Corporation was renamed FUJIFILM Healthcare Americas Corporation ⁴.

To verify how this corporate transition is reflected in official regulatory ground truth, we analyzed the FDA 510(k) Premarket Notification database for the ARIETTA platform family ¹. Table 2 traces the regulatory clearance history of the ARIETTA series across successive corporate applicants:

The practical engineering conclusion from this regulatory trace is clear: the physical circuit architecture of the ARIETTA platform remained continuous across corporate transfers. An ARIETTA 70 DBF CELL board manufactured in 2015 may carry an Aloka or Hitachi label, while the same board manufactured in 2022 carries a Fujifilm label. What determines functional hardware compatibility is the manufacturer part number (e.g., EP572500EE) and revision suffix, not the OEM brand name printed on the silkscreen or barcode tag.

For additional detail on managing multi-vendor equipment fleets subject to corporate end-of-support, service engineers can reference our report on managing multi-brand ultrasound fleet end-of-service transitions.

How do I separate a probe/transducer fault from a console DBF or channel-board fault on an ARIETTA/Prosound?

One of the most frequent misdiagnoses in ultrasound service is mistaking a defective transducer probe—such as an array with dead piezoelectric elements or a pin-damaged connector—for an internal console beamformer or channel board failure.

On high-density platforms like the ARIETTA 70 or Prosound Alpha 10, a dark vertical band across the B-mode image can be caused by damaged elements in an L64 or C252 probe, shorted transmit switches on an EP572900AA Channel board, or a failing DBF CELL board EP572500EE ⁸.

To definitively isolate transducer defects from console front-end failures before ordering board assemblies, service technicians should follow this four-step diagnostic gate:

1. Cross-Console / Cross-Probe Verification: Connect a known-good compatible probe to the suspect console port. If the acoustic dropout disappears and image uniformity is restored, the defect is in the original transducer assembly. Conversely, if the same vertical dropout persists across multiple probes, the fault is isolated to the console front-end channel array or DBF board.
2. Multi-Port Receptacle Shift: Shift the suspect probe between Port 1, Port 2, and Port 3 on the console probe selector block. If the dropout occurs on Port 1 but disappears on Port 2, the fault resides in Port 1's receptacle pin block or selection relay board (e.g., Aloka Probe Selector EP451000DG), not the main beamformer.
3. Acoustic Shadow Geometry & Depth Profile: Observe how the defect behaves under depth and gain changes. Physical probe element failure causes soft-edged acoustic shadows that expand with depth and shift when flexing the probe strain relief. Console beamformer or channel board faults produce razor-sharp, vertical dark lines extending from the array origin to the bottom of the screen at fixed column coordinates.
4. Air-Reverberation Reverberation Pattern Test: Hold the clean transducer in air at high 2D gain. A healthy console front-end generates uniform, horizontal air-reverberation bands across the image field. A dead transmit/receive channel on an EP572500EE DBF or EP572900AA Channel board cuts a sharp vertical slice through all horizontal reverberation lines.

When evaluating safety and risk signals, service teams should also review public regulatory surveillance records. An inspection of FDA MAUDE adverse event records for Hitachi, Fujifilm, and Aloka ultrasound systems (2021–2026) revealed 128 device report rows ². The primary patient-problem categories were 'No Clinical Signs/Symptoms' (60 rows), 'Insufficient Information' (17 rows), and burn and burning-sensation categories (approximately 40 rows, including Superficial First-Degree Burn and Burning Sensation).

Important Regulatory Caveat: In strict compliance with FDA reporting guidelines, MAUDE adverse-event report counts represent passive surveillance data. They do not measure incident rates, do not establish causality, and do not prove that one brand or board model is less safe than another ². Surface heating reports serve as a technical reminder to verify transducer surface temperature and acoustic output calibration during routine acceptance testing.

For further guidance on transducer repair evaluation vs console maintenance, consult our guide on ultrasound probe repair vs replacement decision frameworks or explore Rongtao's dedicated probe repair services.

Is a no-boot, freeze or corrupt-image ARIETTA a PSU, BE or motherboard problem?

A 'no-power', 'boot-freeze', or 'unplanned shutdown' condition on an ARIETTA 60/70 or Prosound Alpha 6/10 console can involve the AC/DC power supply, DC voltage regulator rails, back-end motherboard, system storage, or operator control panel. Systematic troubleshooting isolates the failed module while avoiding unnecessary board swaps.

Qualified biomedical technicians should follow four structured evidence paths when diagnosing power and boot failures:

• Path 1: Total Power Deadness (No LEDs, No Fan Activity): First verify facility AC mains and power cord integrity. If wall power is verified, inspect the main AC power supply unit (e.g., ARIETTA PSU EU-6054 or Prosound PSU EU-6046). Check internal AC fuses, DC standby voltage rails (+5VSTB), and over-voltage protection circuits before condemning the main supply ⁸.
• Path 2: Brief Fan Spin Followed by Instant Thermal Shutdown: This symptom indicates that main AC power is active, but a secondary DC power rail (+5V, +12V, or high-voltage transmit rails +100V/-100V) is experiencing a short circuit. Over-current protection on the PSU shuts down power to prevent board damage. Disconnect downstream channel boards one by one to isolate the shorted board.
• Path 3: System Powers On, Fans Run, Screen Remains Frozen at Logo: Power rails are stable, but host processor initialization has failed. On ARIETTA 60 systems, check the Back-End Motherboard EP576400AB, system RAM modules, and solid-state drive (SSD) OS image. On Prosound Alpha 6 systems, inspect Motherboard EP537000AA and boot-ROM chips ⁸.
• Path 4: System Boots Fully but Resets During Color Doppler / High-Load Scanning: The console powers up normally, but shuts down or reboots when engaging high-current modes like Color Flow or Pulse Wave Doppler. This points to thermal overload or degraded electrolytic bulk capacitors in the main PSU, which fail under heavy transmit power demand.

For in-depth sub-system decision frameworks covering power supply units and user interface failures, service teams can consult our dedicated technical reports on ultrasound power supply failure decision paths and ultrasound control panel and touch display failure isolation.

What verified ARIETTA/Prosound/Alpha board part numbers and revisions exist, and how do I read the EP/CU label?

When identifying replacement circuit boards for Aloka, Hitachi, or Fujifilm consoles, technicians must know how to read the OEM part numbering convention:

• EP-Series Part Numbers (Aloka / ARIETTA / Prosound): Typically formatted as an 8-character code starting with 'EP' followed by six digits and a 2-letter revision code (e.g., EP572500EE for ARIETTA 70 DBF, EP576200BC for ARIETTA 60 DBF, EP495000AE for Alpha 10 Channel). The last two letters denote hardware revision updates.
• EU-Series Sub-Assembly Numbers: Typically used for main power supplies and acquisition module blocks (e.g., EU-6054 for ARIETTA 60/70 PSU, EU-6046 for Alpha 6 PSU, EU-9158C for ARIETTA 70 CELL board).
• CU-Series Legacy Hitachi Part Numbers: Found on legacy Hitachi EUB series consoles (e.g., CUH001-A DBF board, CU6053 Controller board, CU8024-C CW board).

Rongtao Medical maintains 35 verified catalog board rows and 35 tested inventory rows in ground truth stock ⁸. Table 3 lists verified board part numbers across key functional categories:

For details on documented board repairs, technicians can read our legacy case report on repairing the Hitachi ARIETTA 70 DBF CELL board EP572500EE.

Where does Rongtao's Hitachi/Fujifilm/Aloka support start and stop — and what should I send for a quote?

Rongtao Medical operates as an independent medical device service organization and specialized ultrasound parts provider. In strict compliance with FDA medical device servicing guidance ⁵, Rongtao's board-level repairs restore circuit assemblies to original OEM operating specifications without altering intended clinical design or device safety classification.

Rongtao provides multi-brand board-level component repair, advance exchange modules, and tested replacement inventory. Our technical service center offers a typical 5-to-8 business day board repair turnaround, 48-hour live-console stress testing for all repaired assemblies, and a standard 90-day warranty on both repairs and replacement parts stock ⁹.

To explore our verified catalog for Hitachi, Fujifilm, and Aloka hardware, visit our dedicated Rongtao Hitachi support hub and Rongtao Aloka support hub, inspect our quality standards on Rongtao Quality Systems, or contact our engineering team via Rongtao Medical Contact Engineering.

When requesting a Hitachi, Fujifilm, or Aloka board repair or replacement quote, please provide: (1) Exact console model and system software revision (e.g., ARIETTA 70, ARIETTA 60, Prosound ALPHA 6), (2) OEM part number and revision suffix as printed on the board label (e.g., EP572500EE, EP576200BC, EU-6054), (3) Clear photographs of both sides of the board and OEM barcode tags, (4) Specific observed symptoms or diagnostic error codes, (5) Quantity required, and (6) Shipping destination for accurate freight and turnaround estimates.— Rongtao Medical Repair & RFQ Protocol
