Philips Affiniti 50 vs 70 Board Repair by Symptom: Why Catalog A50 ACQ 453562010421 Is Not Inventory 453561884502, Why EPIQ ACQ 453561704246 and Marketplace 453561704245 Are Not Affiniti Identity, and Why K160807 Combined EPIQ-plus-Affiniti Naming Is Not a Pin-for-Pin Board Map

A structured diagnostic, part-matching, and regulatory triage path for clinical engineers, biomedical teams, and ISOs isolating cart power, acquisition modules, host PCs, shared control panels, and software recall gates across Philips Affiniti 50 and 70 ultrasound systems.

Philips Ultrasound Board RepairAffiniti Board RepairAffiniti 50 Parts and ServiceUltrasound Troubleshooting

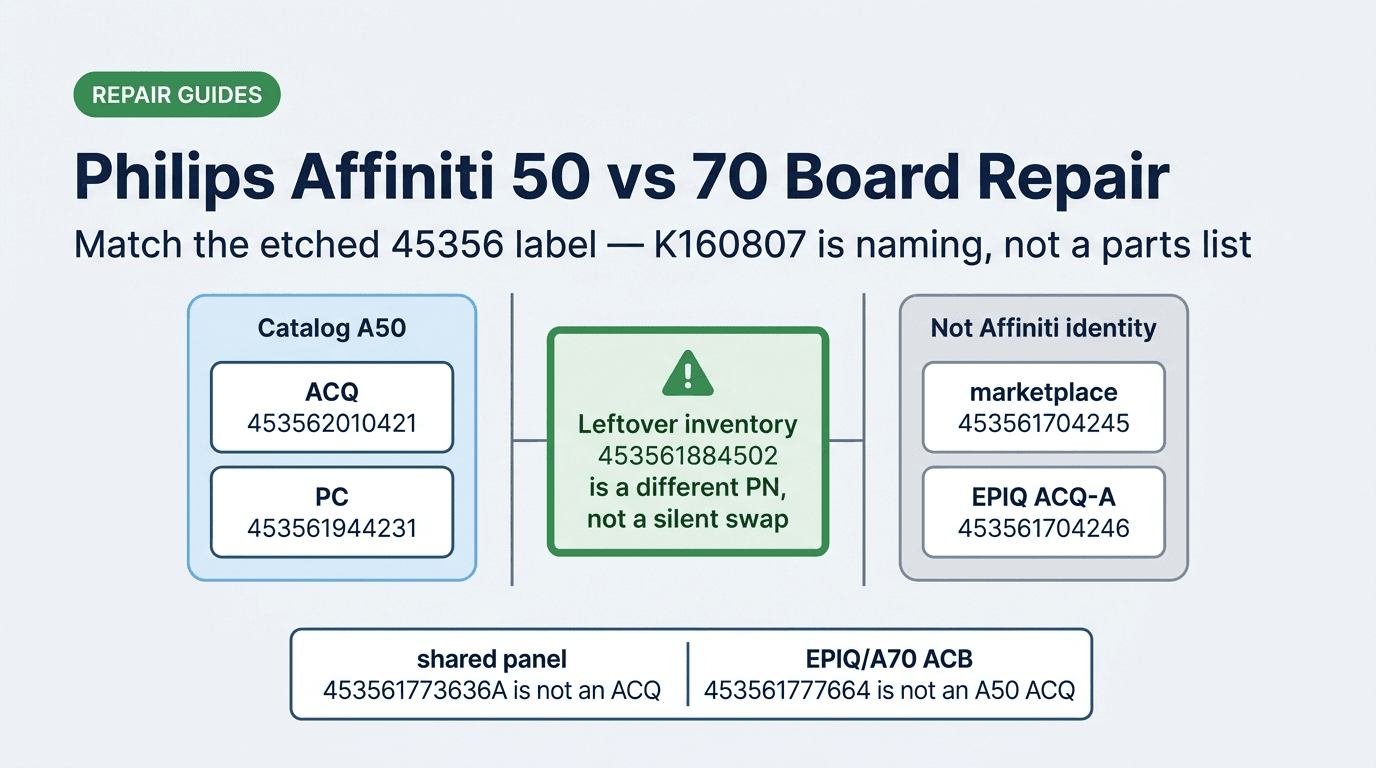

Editorial Repair Guides cover isolating catalog A50 ACQ 453562010421 and A50 PC 453561944231 from leftover inventory 453561884502, marketplace 453561704245, EPIQ ACQ-A 453561704246, shared panel 453561773636A, and EPIQ/A70 ACB 453561777664

Quick Navigation

1. When Is Affiniti 50 Actually Paired with EPIQ 5/7 in FDA Language, and When Is That Pairing Not a Pin-for-Pin ACQ Map?

In clinical equipment asset management, search engines and parts brokers frequently conflate product lines that share common marketing releases. For Philips ultrasound systems, this confusion is rooted in official regulatory documentation: on 6 April 2016, the U.S. Food and Drug Administration (FDA) cleared Premarket Notification K160807 under Product Code IYN (21 CFR 892.1550, Class II), listing four named consoles under a single applicant (Philips Ultrasound, Inc.): EPIQ 5, EPIQ 7, Affiniti 50, and Affiniti 70 1 2.

When aftermarket parts distributors and search engine algorithms encounter a single regulatory filing that names both EPIQ and Affiniti consoles, they frequently treat that filing as a parts list: assuming acquisition modules, power supplies, and host processors interchange across all four named consoles. However, examining the official predicate lineage reveals a very different engineering reality. The primary predicate for K160807 is K132304 (cleared 2013-08-21), which covered the original EPIQ platform exclusively 2. Subsequent filings, such as K163120 (2017-01-10), reiterated this four-model family grouping for software updates, while K172607 (2017-10-04) became the first Traditional filing to introduce Affiniti 30 into the regulatory family 2.

FDA substantial equivalence determinations under Section 510(k) evaluate clinical safety, intended diagnostic use, and acoustic output limits. They do not certify that an Acquisition Module (ACQ), power supply, or host processor can be unbolted from an EPIQ 7 and plugged into an Affiniti 50 card cage. Treating K160807 as an open hardware interchange license is the single most common cause of failed procurement orders for Affiniti systems.

Named 510(k) Premarket Notifications by Affiniti Model Group (Traditional IYN)
First Traditional NamingAffiniti 50 & 70 (K160807)Discrete 510(k) Filings: 11First Traditional NamingAffiniti 30 (K172607)Discrete 510(k) Filings: 11
View chart data
CategoryDiscrete 510(k) Filings
First Traditional Naming Affiniti 50 & 70 (K160807)1
First Traditional Naming Affiniti 30 (K172607)1

Named Traditional IYN 510(k) device_name counts from FDA premarket notification records, not installed-base. Affiniti 50 and 70 are first named together on K160807 (2016-04-06) alongside EPIQ 5/7; Affiniti 30 is first named on Traditional K172607 (2017-10-04). Combined clearance is not a pin-for-pin SKU license. Predicate K132304 is EPIQ-only; K201012 groups CX50 on a Special 510(k) device_name line; later series filings through K260680 are leave-this-page for hardware identity.

Source: U.S. FDA 510(k) Premarket Notification Database via openFDA (K160807, K132304, K172607, K201012; queried September 2026, last_updated 2026-08-17)

Later regulatory filings expand the naming scope further: Special 510(k) K201012 (cleared 2020-05-01) grouped EPIQ series, Affiniti series, CX50, Sparq, and Lumify together on one Special 510(k) device_name line 2. This filing explains why search queries for 'philips affiniti 50 board repair' frequently return Rongtao's published Philips CX50 board symptom path: web crawlers link the shared regulatory text, even though the CX50 is a compact, battery-powered portable system with an entirely separate architecture. Continued series filings through K260680 (cleared 2026-05-27) mean later filings still name Affiniti Series. That is not an end-of-support playbook, and it is not proof of pin-for-pin hardware interchange.

2. Which Affiniti Board Domain Does My Symptom Point To? (Table 1: Symptom-to-Board Routing Matrix)

Before extracting card-cage boards or ordering replacement modules, isolate the fault domain. Table 1 maps observed symptoms to catalog-labeled assemblies where they exist, then sends generic physics to already-published parent paths. Match the etched 45356 string. This page does not publish energized rail measurements or interchange recipes.

Observed Fault Symptom / Error BehaviorSuspect Hardware DomainCandidate Assembly / Part NumberDiagnostic Verification & Safe First-CheckResolution & Destination Link
Black image area, complete absence of acoustic echoes, or acquisition self-test failure with a known-good probeFront-end acquisition module (ACQ) versus host versus probeAffiniti 50: catalog A50 ACQ 453562010421 or leftover inventory 453561884502 (different PN, not a silent swap). Affiniti 70: no photographed ACQ this snapshot; catalog EPIQ/A70 ACB 453561777664 is not an A50 ACQTry a second known-good probe on more than one receptacle. Match the etched 45356 label. Do not treat marketplace 453561704245 or catalog EPIQ ACQ-A 453561704246 as Affiniti identity.Follow the Philips board symptom hub after the label match, or submit photos at Rongtao Contact
System completely dead; no fans, no control-panel LEDs, facility breaker trips when the cart is switched onAC mains / power supply / power distributionEtched chassis PSU label. Catalog has no Affiniti PSU photo. Catalog EPIQ PSU 453561879752 and EPIQ power board 453561803892 are EPIQ-labeled, not AffinitiConfirm facility AC at the outlet. Match the etched supply. Do not order aftermarket PDB 453561474703, regulators 453561700442 / 453561717002, or PartsSource 453561709632 as catalog identity.Follow the cart ultrasound power-supply no-power path
Cart powers on; fans and LEDs respond, but the display stays black or the scanning UI never appearsHost PC / storage / CMOS versus display pathCatalog A50 PC 453561944231 (model A50). No photographed Affiniti 70 host SKU this snapshotIf fans and power LEDs respond but the Philips scanning software never boots, treat this as host/HDD isolation rather than an automatic ACQ or PSU order.Follow the host/HDD versus CMOS boot path
Unresponsive alphanumeric keys, stuck rotary encoders, or TGC sliders that do not change gainOperator control panel (Lane 2)Catalog shared A50/EPIQ B panel 453561773636A / 453561773961Shared catalog labeling is not two assemblies and is not an ACQ license. Do not order 453562010421 or 453561777664 for dead keys.Follow the control panel, touch, trackball and display path
Touch screen unresponsive or reports calibration drift while physical keys still workTouch digitizer / controller (Lane 1)No photographed Affiniti touch-digitizer SKU this snapshotIf physical keys work and only touch input fails, this is the touch lane on the control-panel parent, not an ACQ or ACB order.Follow the control panel, touch, trackball and display path
System freezes only when exiting Review Mode on software 5.0 / 5.0.1 / 5.0.2Software design defect (not hardware failure)Do not replace ACQ 453562010421, leftover 453561884502, A50 PC 453561944231, or ACB 453561777664Read the installed software revision from System Information. Confirm the freeze occurs only on Review Mode exit (FDA recall Z-2484-2021).Coordinate the manufacturer software correction; review the DICOM/network IO and Review-Mode software path
Delayed or not-real-time image on Affiniti 70 running software 10.0 (model 795210)Software processing defectDo not replace the PSU or front-end from this symptom aloneVerify software 10.0 and model 795210 (FDA recall Z-0284-2024). This row is not a PSU census.Coordinate the manufacturer software correction rather than ordering catalog EPIQ power hardware
3D/4D volume rendering fails, motor sweep stalls, or mechanical noise from a volume transducerVolume transducer versus 4D motor pathNo photographed Affiniti 4D motor-board SKU this snapshot; do not treat 453561777664 as the volume probeInspect the probe housing and connector. If the complaint is sweep or housing, use the 4D parent rather than ordering an ACB.Follow the 4D motor board versus volume probe path and probe repair
Outer probe housing / shell separation on a 3D9-3v endovaginal transducerTransducer shell bonding (FDA recall gate)3D9-3v transducer assembly (ITX). Not catalog ACB 453561777664Remove the probe from clinical service and inspect the housing seam (FDA recall Z-2517-2023). Do not re-bond with unvalidated adhesives.Route to probe repair; see the 4D motor board versus volume probe path
Transducer not recognized in one port, or probe ID drops when the cart movesProbe connector versus console transducer interfaceNo photographed Affiniti TI SKU this snapshotInspect receptacle pins. Try a known-good probe in an adjacent port. Connector-tree diagnosis is not reprinted here.Follow the Philips board symptom hub after matching the etched interface label
Table 1: Philips Affiniti 50 and 70 Symptom-to-Board Routing Matrix

Source: Rongtao Medical parts catalog labels (September 2026 snapshot) plus FDA 510(k) / recall gates

3. Why Catalog A50 ACQ 453562010421 Is Not Inventory Leftover 453561884502, and Why a No-Signal Ticket Is Not Automatically That Board

When an Affiniti 50 console powers up but presents a black scanning sector or an 'Acquisition Subsystem Error' dialog, technicians often search directly for an Affiniti ACQ module. Rongtao's photographed parts catalog lists a50-acq-453562010421, labeled A50 ACQ 453562010421, model A50 5. This exact assembly is also featured in Rongtao's homepage hero illustration as a reference representation of modular ultrasound subassemblies.

However, the current warehouse snapshot contains one leftover Affiniti ACQ row whose physical part number is 453561884502, also labeled model A50 5. That twelve-digit string is not catalog 453562010421. Adjacent suffixes are not a silent swap. Rongtao has not published a pin-for-pin interchange or a firmware-match recipe between those two numbers. Stock turns; buyers should never treat a catalog photograph as guaranteed off-the-shelf inventory.

A 'no-signal' symptom is not automatically an ACQ failure. Social posts such as Rongtao Facebook Case 119 ('Philips Affiniti 50 shows no signal when turned') are field-demand records, not bench-tested teardowns in the published case library 7. Power-present / no-scanning-UI belongs on the host/HDD versus CMOS boot path and may involve catalog A50 PC 453561944231. Rails-down tickets belong on the cart ultrasound power-supply no-power path after matching the etched PSU. Do not condemn the acquisition module from a social post or from an unmeasured 'no signal' description.

In clinical engineering risk reviews, technicians sometimes query adverse event registries to evaluate whether a suspected board defect reflects a broader fleet reliability signal. Quoted model number queries across the FDA Manufacturer and User Facility Device Experience (MAUDE) database for part numbers 453562010421, 453561884502, 453561944231, 453561773636A, 453561777664, 453561704246, and 453561704245 returned zero matching adverse event records (NOT_FOUND) 4. While individual MAUDE complaint narratives for Affiniti 70 appear in organic search listings 7, passive surveillance reports do not measure failure incidence rates and do not establish board-level causality.

4. Why Made-in-China 453561704245 and Catalog EPIQ ACQ-A 453561704246 Are Not Affiniti Identity Even When K160807 Names Both Families

A pervasive source of confusion in current search results is third-party marketplace product syndication. Searching for Affiniti board repair frequently leads to third-party exporter listings on Made-in-China and commercial distributor sites that advertise part number 453561704245 under the title 'Repair Philips Affiniti 50 Affiniti 70 Epiq 5 Epiq 7 Acquisition Module / Epiq Acq Board' with 2–4 working day delivery claims 7 8. Search engine generative AI overviews cite these listings, creating the impression that 453561704245 is a universal acquisition board that fits all four consoles.

This assertion does not match Rongtao catalog labels. Rongtao's catalog contains no SKU for 453561704245. Instead, catalog epiq-acq-a-453561704246 is labeled EPIQ ACQ-A, model EPIQ 5. 453561704245 and 453561704246 are adjacent numeric strings; adjacent suffixes are not a swap license, and neither string is cataloged as an Affiniti 50 assembly.

While K160807 established substantial equivalence language for EPIQ and Affiniti platforms under common clinical indications 2, catalog identity is separate. Catalog 453561704246 is labeled EPIQ ACQ-A; catalog 453562010421 is labeled A50 ACQ 5. Combined 510(k) naming is not a license to install 453561704246 or marketplace 453561704245 into an Affiniti 50 cage. Rongtao has not verified that interchange.

5. Why Shared Panel 453561773636A Is Catalog A50/EPIQ B, Not an ACQ License and Not Two Assemblies

While card-cage electronics remain strictly divided, certain human-interface subassemblies are genuinely shared across platforms. Rongtao catalog SKU a50-epiq-b-control-panel-with-gain-keyboard-453561773636a-453561773961 carries part number 453561773636A (also referencing 453561773961) and is designated with model string A50/EPIQ B 5.

This dual-model catalog entry has led some procurement specialists to conclude that if the control panel interchanges between Affiniti 50 and EPIQ B-revision carts, other internal assemblies must interchange as well. That conclusion is not catalog identity. The panel is an operator-interface assembly. It belongs to Lane 2 of the ultrasound control panel, touch, trackball and display path. Shared keyboard labeling is not a license to swap acquisition modules, power supplies, or host PCs.

The host processing core photographed for Affiniti 50 is a separate catalog row: a50-pc-453561944231, labeled A50 PC 453561944231, model A50 5. Unresponsive keys should be isolated to the control-panel path. Power-present / no-scanning-UI belongs on the host/HDD versus CMOS boot path.

6. Why EPIQ/A70 ACB 453561777664 Is Not an A50 ACQ, and Why Catalog Has No Affiniti PSU Photo

Another catalog distinction is SKU epiq-a70-acb-b-version-453561777664, part number 453561777664, model EPIQ/A70 5. Catalog identity is an Acquisition Control Board (ACB), B-version, labeled EPIQ/A70. Two boundaries follow from that label: an ACB is not cataloged as a complete Affiniti 50 ACQ, and it is not labeled A50. Ordering 453561777664 to resolve an Affiniti 50 acquisition failure is a mismatch against current catalog rows.

Power supply procurement presents an equally hazardous trap. Current AI Overviews for 'philips affiniti 50 power supply' state that the system operates on 100–240 V AC (50/60 Hz) and assert that Power Distribution Board (PDB) 453561474703 and power regulators 453561700442 / 453561717002 interchange freely between EPIQ and Affiniti carts 7. On eBay, third-party sellers list 'Philips Healthcare Affiniti 50 EPIQ 7G Power Regulators' 8, while PartsSource lists regulator number 453561709632 7.

Rongtao's catalog contains zero photo SKUs for an Affiniti PSU. Catalog assemblies EPIQ Power Supply 453561879752 and EPIQ Power Board 453561803892 are explicitly labeled for EPIQ systems only 5. Rongtao does not adopt unverified third-party regulator part numbers as catalog truth. If an Affiniti cart experiences total loss of power, breaker trips, or boot looping, match the manufacturer part number on the etched rating plate and follow the cart ultrasound power-supply no-power path.

7. If the System Locks Only When Leaving Review Mode, Why Z-2484-2021 Is Not a Reason to Order 453562010421

When an ultrasound system freezes in clinical operation, the immediate reaction of many biomedical departments is to suspect electronic component degradation on the front-end ACQ board or host motherboard. On the Affiniti platform, this assumption can result in costly, unnecessary hardware replacements due to a known software defect.

On 6 August 2021, the FDA classified Recall Z-2484-2021 (Class II Completed, recall event ID 88514, Product Code IYO) covering Philips Affiniti Diagnostic Ultrasound Systems across three specific model series: Affiniti 30 (models 795121, 795218), Affiniti 50 (models 795208, 795118), and Affiniti 70 (models 795210, 795119) running system software versions 5.0, 5.0.1, or 5.0.2 3. The identical issue prompted sibling recall Z-2483-2021 on the EPIQ platform. The official FDA determination confirms the root cause was 'Software design': when an operator exits Review Mode after reviewing stored images, the system may experience an unrecoverable software lock-up or application freeze 3.

The total recalled quantity of 10,583 systems represents the combined global distribution base of eligible EPIQ and Affiniti units—it is not an incidence rate of hardware failure. Replacing catalog A50 ACQ 453562010421, inventory leftover 453561884502, or host PC 453561944231 will not resolve a Review Mode lock-up on software version 5.0.x, because the fault resides in the image management software code. Clinical engineering teams encountering this symptom must verify the installed software release and coordinate the manufacturer software correction rather than ordering card-cage hardware. Refer to the DICOM/network IO and Review-Mode software path.

8. If a 3D9-3v Housing Is Separating, Why Z-2517-2023 Is a Probe Gate Rather Than an ACB Order

Diagnostic triage requires distinguishing between console-level electronic failures and transducer-specific structural defects. Several FDA regulatory actions for the Affiniti family involve transducers that must be gated off from cart-level troubleshooting.

On 30 June 2023, FDA initiated Recall Z-2517-2023 (Class II Completed, event 92761, Product Code ITX) covering the Philips 3D9-3v endovaginal curved array transducer used across Affiniti 30, 50, and 70 systems 3. The recall addressed mechanical separation of the outer probe chassis and housing bonding seam. If an operator reports noisy imaging, motor sweep stutter, or fluid ingress concerns with a 3D9-3v probe, technicians must not suspect the Acquisition Control Board (453561777664) or motor controller. The probe must be quarantined immediately to prevent cross-contamination and patient electrical safety hazards. Quarantined volume transducers should be routed to specialized probe repair services and evaluated under the 4D motor board vs volume probe path.

Similarly, FDA Recall Z-0284-2024 (Class II Completed, event 93218, Product Code IYN, initiated 2023-10-09) addressed Affiniti 70 systems (model 795210) operating software version 10.0 that exhibited delayed or non-real-time imaging 3. Like the Review Mode issue, this is a software-timed rendering defect, not a failing front-end board. Additional historical actions, such as Z-1841-2020 and Z-1843-2020 covering S7-3t and S8-3t transesophageal (TEE) probes, addressed distal-tip temperature programming rather than cart power boards 3. Establishing these recall gates prevents costly misdiagnosis.

9. Where Affiniti 30, CVx, CX50, EPIQ, and ClearVue Tickets Go, and Why K201012 Grouping CX50 Is Not a Board-Swap License

To prevent catalog misallocation, service desks must enforce strict routing gates for incoming service tickets. Rongtao Medical's published decision paths delineate these boundaries: the Philips board symptom hub, the Philips EPIQ vs iU22/iE33 board symptom path, the Philips CX50 board symptom path, and the Philips ClearVue board path establish dedicated component frameworks 6. The broader Philips ultrasound portfolio spans multiple distinct platforms that must not be merged into Affiniti 50/70 workflows:

  • Affiniti 30: Named on Traditional 510(k) K172607 (2017-10-04) 2. YouTube videos titled as Affiniti 30 power-supply repair rank on Affiniti 50 and 70 board queries 7 8. Affiniti 30 is not listed in Rongtao's Philips coverage string on the Philips service portal 5. Do not treat those videos as an Affiniti 50/70 board map, and do not reprint DIY energized PSU steps.
  • Affiniti CVx: A cardiology configuration that appears in search and PAA pollution. It is not listed in Rongtao's Philips coverage string (A50 and A70 only) 5. Leave CVx tickets off this page; do not treat a CVx search hit as an Affiniti 50/70 parts license.
  • CX50 Portable: Currently ranks organic #3 on 'philips affiniti 50 board repair' because 510(k) K201012 grouped CX50 with the Affiniti series on the device_name line 2 7. The CX50 is a compact, battery-operated laptop-style cart. Tickets involving CX50 internal batteries, AC adapters, or modular e-boxes must be redirected to the Philips CX50 board symptom path.
  • EPIQ 5 and EPIQ 7: Premium platforms with catalog ACQ-A (453561704246) and PSU (453561879752) rows labeled EPIQ, not Affiniti. EPIQ card-cage tickets belong on the Philips EPIQ vs iU22/iE33 board symptom path.
  • ClearVue 350, 650, and 850: Separate family path. Route ClearVue tickets to the dedicated Philips ClearVue 350 vs 650 vs 850 board path rather than mixing CV part numbers into this Affiniti matrix.
  • Legacy iU22 and iE33: Older generation platforms utilizing acoustic acquisition modules (AIM) and card-cage power supplies. Route to the Philips board symptom hub.

10. Affiniti 50 vs 70 Part Number Collision and Sourcing Matrix (Table 2)

Table 2 summarizes verified part numbers, catalog designations, marketplace collisions, and sourcing decisions across Affiniti 50, Affiniti 70, and related platforms.

Part Number StringCatalog Assembly DesignationPlatform Compatibility ScopeMarketplace / AI Overview CollisionProcurement & Technical Verdict
453562010421A50 ACQPhilips Affiniti 50 (Model A50)Featured on Rongtao homepage hero; correctly designated as A50 acquisition module in catalogVerified catalog SKU (a50-acq-453562010421); match physical rating plate; submit for component repair or exchange
453561884502ACQ Model A50Philips Affiniti 50 (Model A50)Warehouse inventory leftover snapshot; distinct part number from catalog photo 453562010421Genuine leftover inventory row; match the etched PN; not a silent swap for catalog 453562010421
453561944231A50 PCPhilips Affiniti 50 (Model A50)Host PC processing unit; misdiagnosed as ACQ during black-screen boot hangsVerified catalog SKU (a50-pc-453561944231); isolate video output and SATA boot before replacing
453561773636A / 453561773961A50/EPIQ B Control Panel with Gain KeyboardShared across Affiniti 50 and EPIQ B-revision cartsMislabeled in broker listings as an acquisition subsystem board or universal hardware licenseVerified shared catalog SKU (453561773636A); Lane 1 control panel assembly only
453561777664EPIQ/A70 ACB B VersionPhilips EPIQ and Affiniti 70 (Model EPIQ/A70)Frequently confused with Affiniti 50 ACQ (453562010421) due to 'A70' designationVerified catalog SKU (epiq-a70-acb-b-version-453561777664); Acquisition Control Board for A70/EPIQ; not an A50 part
453561704246EPIQ ACQ-APhilips EPIQ Platforms OnlyMarketplaces claim universal fit across Affiniti 50/70 and EPIQ 5/7 based on K160807Verified catalog SKU (epiq-acq-a-453561704246); EPIQ-specific card cage; do not install into Affiniti 50
453561704245Uncataloged (Marketplace SKU)EPIQ / Third-Party Exporter ListingAdvertised on Made-in-China and commercial distributor sites as universal Affiniti/EPIQ ACQ with 2–4 day copyNot a Rongtao catalog SKU; sequential variant of EPIQ ACQ-A 453561704246; do not purchase for Affiniti 50 without verification
453561879752EPIQ Power SupplyPhilips EPIQ Platforms OnlySearches for Affiniti power supply return EPIQ PSU listings; catalog has no Affiniti PSU photoVerified catalog SKU (epiq-power-supply-453561879752); EPIQ only; verify etched label on Affiniti chassis
453561474703Power Distribution Board (PDB)Third-Party Aftermarket ListingAI Overview names as interchangeable EPIQ/Affiniti PDB along with regulators 453561700442 / 453561717002Not a Rongtao catalog SKU; inspect physical chassis rating plate before ordering aftermarket power assemblies
453561709632Power Regulator ModuleThird-Party Broker Listing (PartsSource)Cited in Affiniti 70 AI Overviews as standard replacement regulatorThird-party listing; confirm exact physical labeling and input/output rail specifications
Table 2: Philips Affiniti Part Number Collision, Catalog Status, and Sourcing Matrix

Source: Rongtao Medical parts catalog snapshot (September 2026) and FDA 510(k) / recall regulatory lineage

11. Why Live Model-Page Taxonomy Groups Catalog SKUs, and Why Affiniti Inventory Currently Shows One Leftover Row

Generated model pages follow catalog model strings, not engineering equivalence. /models/philips-a50 currently lists catalog A50-only rows (ACQ 453562010421 and PC 453561944231) plus leftover inventory 453561884502. The shared panel lives on /models/philips-a50-epiq-b because its catalog model string is A50/EPIQ B. /models/philips-epiq-a70 lists catalog ACB 453561777664. Token matching on the A50/EPIQ B page can also attach EPIQ-labeled stock rows; that dump is not a swap license.

Programmatic taxonomy is a discovery aid, not a pin-for-pin map. Current warehouse inventory registers exactly one leftover Affiniti ACQ board, part number 453561884502 (model A50, 90-day field) 5. That leftover is not a catalog SKU and is not a silent substitute for photographed 453562010421. Stock turns; confirm availability and the etched label with the engineering desk before shipping.

12. Where Rongtao Fits, and Where It Does Not — Including Quote-Ready Photos

Rongtao Medical is an independent multi-brand ultrasound board-repair and parts supplier. There are currently zero Philips photo teardown cases in the published case library, so this page does not invent an Affiniti success rate or treat Facebook Case 119 as a bench result 5.

  • Where Rongtao fits: Component-level repair of identified Affiniti-adjacent assemblies after matching the etched part number, including catalog A50 ACQ 453562010421, A50 PC 453561944231, shared A50/EPIQ B panel 453561773636A, and EPIQ/A70 ACB 453561777664.
  • Where Rongtao fits: Tested replacement from live catalog or inventory when a matching row exists. Leftover inventory 453561884502 is a different PN from catalog 453562010421; stock turns and must be confirmed.
  • Where Rongtao fits: Typical board-repair turnaround is 5–8 business days, with 48-hour real-machine testing inside an actual ultrasound, and a typically 90-day warranty, confirmed per item at quote 5.
  • Where Rongtao fits: Probe evaluation and rebuild for volume and standard transducers, including 3D9-3v housing complaints, via probe repair.
  • Where Rongtao does not fit: Rongtao is not Philips, GE HealthCare, or another OEM authorized representative. Brand names identify supported equipment only.
  • Where Rongtao does not fit: We do not offer 2–4 day rush repairs or up to 180-day generic warranties copied from marketplace or AI Overview text. Those bands are not current Rongtao terms.
  • Where Rongtao does not fit: We do not sell or generate proprietary OEM software option keys, and we do not treat Z-2484-2021 or Z-0284-2024 as a reason to replace an ACQ.
  • Where Rongtao does not fit: We do not publish energized power-supply probing, capacitor-discharge recipes, or Affiniti 30 / CVx coverage expansions absent catalog SKUs.

To receive an immediate, accurate technical evaluation and formal quote without delays, clinical engineers should submit the following information via Rongtao Contact:

  1. System Rating Plate: Clear photograph of the cart rear rating plate showing full model designation (e.g., Affiniti 50 model 795208 or Affiniti 70 model 795210) and system serial number.
  2. Assembly Labels: High-resolution photographs of both the component side and solder side of the suspect board, with legible close-ups of all printed and etched 12-digit Philips part numbers (e.g., 453562010421, 453561884502, 453561944231) and serial barcode labels.
  3. System Software Revision: Photograph of the 'System Information' or 'About' diagnostic utility screen showing the installed system software version (e.g., 5.0, 5.0.2, 10.0).
  4. Observed Symptom and Error Codes: Exact description of the failure behavior, error dialog text, or LED diagnostic state, including whether the fault occurs during boot, probe connection, or Review Mode exit.
  5. Destination & Required Service: Delivery postal code, required turnaround schedule, and preference for component repair of the original board versus tested exchange.

13. Frequently Asked Questions (FAQs)

The Affiniti 50 AI Overview says to order 453561704245 because it fits Affiniti 50/70 and EPIQ 5/7. Should I order that instead of matching the etched ACQ label?
No. Part number 453561704245 is a marketplace listing string, not a Rongtao catalog SKU, and sits next to catalog EPIQ ACQ-A 453561704246. Combined marketplace titles are not Affiniti 50 identity. Match the etched twelve-digit number on the board in the cart (for example catalog 453562010421).

K160807 names EPIQ 5/7 and Affiniti 50/70 together. Can I fit catalog EPIQ ACQ-A 453561704246 in an Affiniti 50, or leftover inventory 453561884502 as a silent swap for 453562010421?
No. K160807 is combined clearance language, not a documented internal-hardware map. Catalog EPIQ ACQ-A 453561704246 is labeled EPIQ, not Affiniti. Leftover inventory 453561884502 is a different PN from photographed catalog 453562010421. Adjacent suffixes are not a silent swap.

The cart shows no signal at power-on: is that catalog A50 ACQ, EPIQ PSU 453561879752, host/HDD, Facebook Case 119, or a YouTube Affiniti 30 PSU video?
Isolate the domain before ordering. Rails-down tickets go to the cart power-supply path after matching the etched PSU; do not order EPIQ PSU 453561879752 as Affiniti identity. If fans and LEDs respond but the scanning UI never appears, use the host boot path and catalog A50 PC 453561944231. Facebook Case 119 is demand, not a remote diagnosis. Do not follow DIY Affiniti 30 videos.

Affiniti 70 locks when leaving Review Mode: is that Z-2484-2021 software or a reason to replace 453561777664?
If the freeze occurs specifically upon exiting Review Mode and the system runs software version 5.0, 5.0.1, or 5.0.2, this is FDA Recall Z-2484-2021—a confirmed software design defect. Replacing Acquisition Control Board 453561777664 will not resolve the lock-up. The cart requires the manufacturer software correction; refer to the DICOM and Review-Mode path.

What photos and information should I send to get an Affiniti quote without using a Made-in-China 453561704245 dump or a 2–4 day / 180-day marketplace offer?
Provide photos of the cart rear rating plate (model and serial), both sides of the extracted board showing etched 12-digit Philips numbers and barcode labels, the system software version from the diagnostic utility screen, and the observed error text. Rongtao can then match the exact revision, quote standard 5–8 business-day board repair or tested replacement, and confirm the typically 90-day warranty per item.
