GE Voluson S6/S8/S10 Board Repair by Symptom and Generation: CPS/DPSS vs CPU vs DRFM/RFS vs BF/DBM vs DPI/TI vs Control Panel — A Decision Path Across BT16–BT18 and Shared P6/P8 Assemblies

In this decision path

• Which Voluson S6, S8, or S10 assembly does the symptom point to?
• Why DRFM 5497712 and RFS 5364098 are RF front-end boards even when listings say motherboard
• No power versus power-present bootloop: CPS/DPSS versus host CPU versus storage
• No echo or channel dropout: which beamformer label applies
• Single-port recognition failure: probe socket versus TI/DPI
• 2D works but 4D does not: why BF64D 5728958 is the wrong first order
• Unresponsive knobs: Case 014 encoder bank, not DRFM
• BT16/BT18 labels, P6/P8 shared assemblies, and part collisions
• FDA rule-outs: 510(k) line, Z-0865-2024, and MAUDE
• Where Rongtao fits, and where it does not
• Quote-ready handoff
• Frequently asked questions

Which Voluson S6, S8, or S10 assembly does my symptom point to?

The GE Voluson S-series cart platform—spanning the Voluson S6 and Voluson S8 (first Traditional 510(k) naming those models: K103649, 2011-03-09), the Voluson S10 (first named in K160184, 2016-02-25), and Voluson S8t / S10 Expert (K213642, 2022-01-13, Traditional; S10 Expert also appears on Special K180374, 2018-03-13) ²—sits between compact portables and premium consoles such as the GE Voluson E8 and Voluson E10. E8/E10 use RFM/RSP architecture; this page is the S-cart DRFM/RFS/BF64/DPI map. For brand-wide GE triage first, use the GE ultrasound board symptom decision path. Selected P5/P6 SYSCON and APS labels also appear on some Voluson S6/S8 notes in the LOGIQ P5–P9 board path; that sharing is a label-match note, not a license to drop P7/P9 MCB or E8 RFM into an S chassis. Model SKU dumps already rank at GE Voluson S6 and GE Voluson S10 under GE coverage; this article is the decision layer those pages lack.

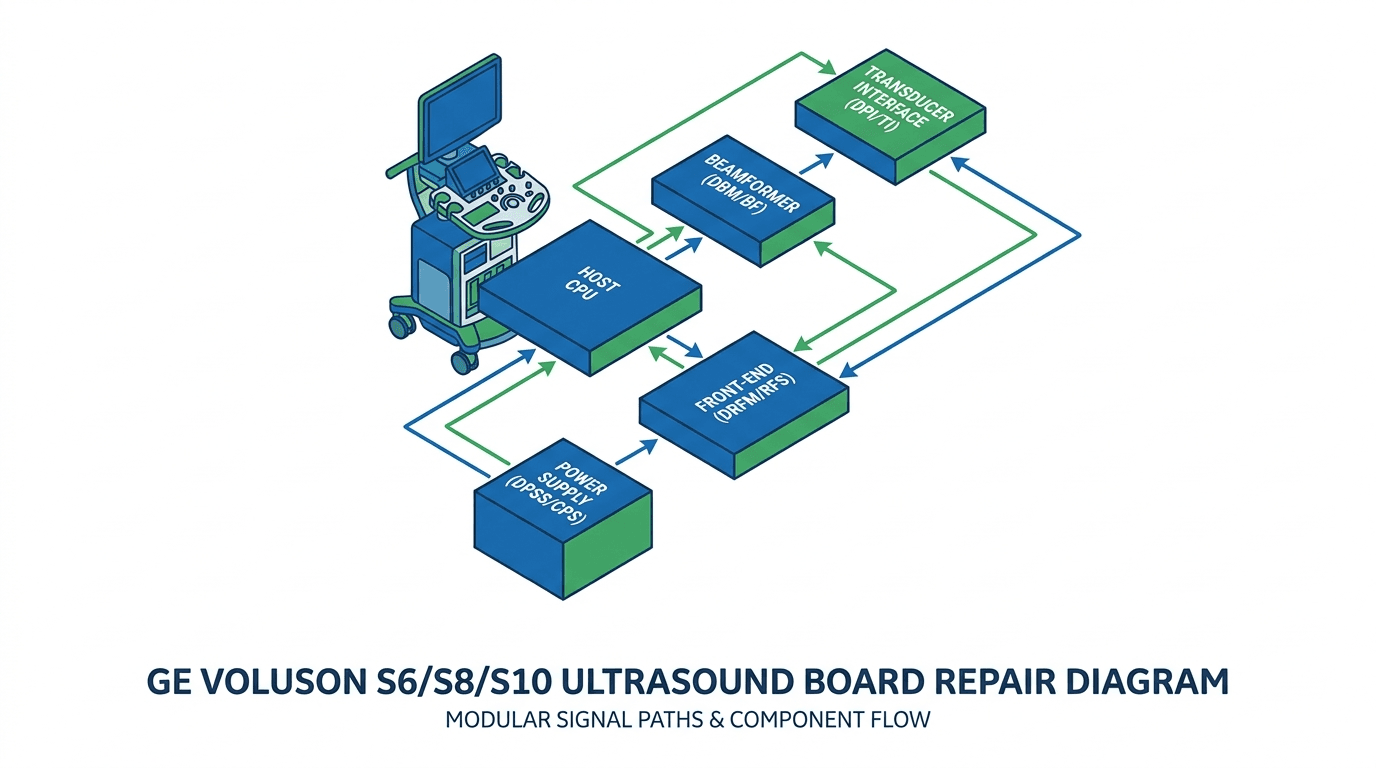

When a Voluson S console malfunctions in clinical practice, observed failure symptoms frequently present with deceptive overlap. A black monitor can indicate a tripped DC power rail, a stalled host CPU, a corrupt solid-state drive volume, or an unseated front-end board holding the backplane in reset. Similarly, image dropouts and color Doppler streaking can stem from acoustic transducer element burnout, Transducer Interface (TI) relay pitting, or digital beamformer transceiver failures. To avoid replacing functional boards on erroneous assumptions, biomedical engineers must systematically classify faults across six core hardware domains:

• Power Conversion & Distribution Domain (CPS / DPSS Power Supply): Converts incoming AC mains into tightly regulated low-voltage DC rails for digital processing logic and high-voltage DC bias rails (±HV) for acoustic pulse generation. Failures present as total system deadness, standby power lockout, thermal trips under heavy Doppler loading, or spontaneous reboots during high-voltage transmit pulses ⁵.
• Digital Back-End & Host Computing Domain (CPU Board / SOM Module & Storage): Executes the system BIOS, embedded operating system, cine memory management, and user interface. Failures present as system freeze at BIOS splash, stop errors during OS loading, unmountable boot volumes, or communication loss between the host PC and front-end electronics ^{5 6}.
• RF Front-End & Subsystem Processing Domain (DRFM / RFS Board): Handles digital RF demodulation, front-end timing control, and high-speed signal distribution between the beamformer card cage and back-end processor. Failures present as complete loss of acoustic echo across all transducer ports while user interface graphics remain fully responsive ⁵.
• Acoustic Beamforming & Channel Demodulation Domain (BF64 / BF128 / DBM128 / DBM64): Drives multichannel transmit pulses and executes real-time receive focusing. Failures present as vertical shadow bands, fixed channel dropouts, color-Doppler noise, or spatial distortion that persists when known-good transducers are connected ^{5 6}.
• Transducer Interfacing & Probe Recognition Domain (TI Board / DPI Board): Houses physical probe connector sockets, high-voltage multiplexing relays, and probe identification circuitry. Failures present as probe recognition failure on a single port, intermittent signal loss during connector movement, or dead pins on specific transducer sockets ⁵.
• User Interface & Operator Console Domain (Control Panel, Touch Screen, Trackball, Encoders): Operator knobs, key matrix, TGC sliders, trackball, and touch coordinates. Failures present as unresponsive rotary knobs (Case 014), frozen touch, or panel communication timeouts ^{5 6}.

Why are DRFM 5497712 and RFS 5364098 RF front-end boards even when listings say motherboard?

A recurring sourcing mistake is ordering DRFM 5497712 or RFS 5364098 for a boot failure because a catalog, broker list, or marketplace row titles the board 'Motherboard' or 'Main Board' ^{5 7}. Rongtao's catalog uses those motherboard labels; the published host HDD/SSD vs motherboard path already excludes both part numbers from the PC/host table. Treat DRFM/RFS as RF/front-end class even when the shopping title says motherboard ^{5 6}.

Those assemblies do not replace the host CPU, storage volume, or power-supply cage. When a Voluson S8 or S10 has fans or LEDs on but never reaches the scanning UI—black screen, splash hang, or an OS-load / unmountable-volume stop—the first isolation is host CPU versus storage versus a collapsed low-voltage rail, not DRFM ⁶.

In this snapshot the host labels are the Voluson S6 CPU 013170 (catalog and inventory), Voluson S8 CPU 7324556 (inventory), and Voluson S10 CPU SOM 6324556-2 plus related S10 main-board strings 5773599 / 7324559 / DRFG 5773600 in the technical archive ^{5 6}. Ordering DRFM 5497712 or RFS 5364098 for a host-side no-UI fault delays the right repair.

No power versus power-present bootloop: Is the failure in CPS/DPSS, host CPU, or storage?

When a Voluson S-series cart fails to start, clinical engineers must immediately separate 'total power failure' from 'power-present bootloop or black screen'. These two presentations originate in entirely separate hardware domains and require distinct diagnostic workflows:

• Phase 1: Total Power Absence (Rails-Down Condition): If pressing the console power button produces zero response—no cooling fans spin, the standby power LED remains dark, and no internal relays click—start at the AC inlet, breaker, or the internal power module. On Voluson S6 and S8 this snapshot points to CPS 5393431-3 or shared Power Supply 6004001 ⁵. On Voluson S10 the photo-backed cage is DPSS 8004401 ⁵; CPS 6002001 is a P8/S6/S10 shared catalog row. For rails-down isolation, use the ultrasound power-supply no-power and boot-loop path. Qualified service only; do not probe energized backplanes.
• Phase 2: Power-Present Black Screen (No Scanning UI): If fans spin and power LEDs illuminate but the primary monitor stays dark with no splash, the supply is delivering enough power to spin fans. Route the labeled host module next: CPU 013170 (S6), CPU 7324556 (S8), or SOM 6324556-2 (S10 archive) ^{5 6}. Secondary qualified-service checks include seated memory and a depleted CMOS coin cell; cell type is board-specific.
• Phase 3: Power-Present OS Bootloop / Hang: If a splash or host UI appears and then loops, freezes, or reports a missing volume, the hardware has gotten past a dead-cage state. Treat storage/image versus host CPU using the ultrasound will not boot HDD vs motherboard path rather than condemning DPSS, DRFM, or RFS ⁶. Do not republish field BIOS/NUC reload recipes; software-image work can implicate servicing-versus-remanufacturing questions and stays with qualified service.

No echo or channel dropout after probe swap: Which beamformer revision applies?

Acoustic signal loss on a Voluson S console typically presents in one of two ways: complete absence of echo information (a black ultrasound sector while menus and patient demographics display normally), or persistent vertical black bands (channel dropouts) across the image sector. When this occurs, engineers must execute a strict four-step probe substitution protocol before removing card-cage covers: (1) disconnect the transducer and inspect the connector pins for physical bending or gel contamination; (2) connect the transducer to an alternate port on the same console; (3) test a second, known-good transducer of different frequency on the original port; and (4) test the suspect transducer on an independent console. If the dropout persists across multiple known-good probes on all ports, the failure is isolated to the console's beamforming card cage ^{5 6}.

The beamforming architecture across the Voluson S-series varies significantly by model tier and hardware release:

• Voluson S6 beamformer labels: Photo-backed BF64 5396937-2 and inventory BF64D 5728958 are 64-channel beamformer rows on S6, not 4D motors ⁵. Archive notes also list other BF strings against S6; match the PCB label.
• Voluson S8 beamformer labels: Inventory rows include BF128 5338209-2 / 5433961 and DBM128 / DBM128S 5573638 / 5573638-2 / 5573638-3; archive notes also list BF192 5357234 ^{5 6}.
• Voluson S10 beamformer labels: Inventory DBM128G 5773602 and catalog DBM64G 5773603 (P8/S10 shared) ⁵.
• Shared P8/S6/S8 channel module: DBM64 5573639-2 is a documented multi-model catalog row. A shared listing is not a silent-swap license; verify the etched dash revision ⁵.

Search AI Overviews for 'ge voluson s8 board repair' treat 5573638-2 (DBM128S) as a family-wide drop-in across S6, S8, S10, and P8 ⁷. That is a shopping-summary error, not a swap license. Inventory labels 5573638-2 as VOLUSON S8; the S6 photo-backed beamformer row is BF64 5396937-2; S10 inventory uses G-revision DBM128G 5773602. Adjacent dash numbers and shared-family listings still require a PCB-label match. For channel isolation after a probe swap, use the beamformer and front-end board failure report.

Single-port recognition failure: Is the defect in the probe socket or TI/DPI board?

When a transducer operates on Port 2 or Port 3 but fails to initialize, shows 'Probe Not Recognized', or produces contact noise on Port 1, isolate the Transducer Interface (TI) domain before condemning a beamformer ⁵.

Two TI/DPI catalog rows circulate on this family: TI Board 5366065-2 (S6/S8) and DPI TI Board 5722794-2 (S8/S10) ⁵. Archive titles call 5722794-2 a DPI assembly / probe-interface board (including BT16–BT18 notes). That is a transducer-interface class, not an I/O video board and not a DisplayPort card. Video-path inventory on S8/S10 includes GPU 5611467-2, which is a different domain ^{5 6}.

Before condemning a TI or DPI board, inspect the probe connector and socket for bent or retracted pins and dried coupling gel. Contamination and pin damage commonly mimic a board fault. If a known-good transducer still fails only on one port after cleaning, send the labeled TI/DPI assembly for component-level repair ⁵.

2D works but 4D does not: Why is BF64D 5728958 the wrong part to order?

A Voluson S console that still produces a usable 2D image but will not complete a 3D/4D sweep—freeze, motor-drive error, or volume-probe initialization failure—needs sequence isolation between the mechanical volume transducer and any console 4D drive, not a beamformer swap ⁶.

Start with a known-good volume-probe substitution, as the 4D motor board versus volume probe path already requires. GE HealthCare's Voluson S8 product page names volume probes such as RAB6-RS and RIC5-9A-RS; those marketing names identify transducers, not a console DRFM or BF order ⁸. If a second volume transducer restores 4D, the console path is intact for that test—route the failed probe to ultrasound probe repair.

If 4D mode fails across multiple known-good volume probes, the console's internal 4D motor drive board or motor power supply is suspect. However, service coordinators must heed a critical part-number warning: Do NOT order part number BF64D 5728958 as a 4D motor drive board ^{5 6}. As established in the 4D motor board vs volume probe decision path, the 'D' suffix in BF64D 5728958 denotes a digital 64-channel beamformer variation, not a motor controller. Installing BF64D to fix a mechanical 4D sweep fault will not restore volume acquisition.

Unresponsive rotary knobs: How did Case 014 resolve control panel failure without replacing DRFM?

Operator control panel failures on Voluson S consoles often manifest as physical controls failing to adjust on-screen parameters: a rotary gain knob spins freely without changing image gain, depth adjustments lag, or specific push buttons fail to register. Because the control panel interfaces directly with the system host software, inexperienced technicians occasionally misdiagnose unresponsive physical controls as a systemic motherboard or DRFM communication collapse ⁶.

This failure mode is exemplified by documented Rongtao Medical repair case Case 014 (Voluson S6 Control Panel) ⁶. In this clinical case, a hospital Voluson S6 presented with a completely unresponsive primary rotary knob on the operator console. Rather than condemning expensive front-end electronics or replacing the entire operator deck, Rongtao engineers executed targeted bench diagnostics:

• Bench isolation: The unresponsive knob was isolated to a worn encoder bank on the operator panel, not to DRFM or RFS.
• Component-level rework: Encoder bank replaced, ribbon refit, panel firmware repaired and re-paired with the system ⁶.
• Turnaround: Documented Case 014 TAT is 4 days. That outcome has no published savings percentage and is one encoder case, not a DRFM/RFS/BF denominator.
• Related assemblies: Voluson S10 catalog row 7720003 is the operation-panel main control board, not GE Service Shop 7720005. S6 catalog also lists TAS4729N 10 trackball and silicone film 5715002 ⁵. For panel versus host isolation, see the control panel, touch screen and display path.

BT16 versus BT18 labels: How do shared P6/P8 assemblies and part collisions affect sourcing?

Maintaining a mixed fleet of GE ultrasound systems requires meticulous attention to hardware revisions (such as BT16, BT17, and BT18 releases) and multi-model donor sharing. While GE utilized modular engineering across its mid-tier cart lines, adjacent part numbers and shared model designations frequently cause critical procurement errors ^{5 6}.

FDA regulatory rule-outs: How do 510(k) clearances, IC9-RS recall Z-0865-2024, and MAUDE data clarify board health?

Regulatory and post-market surveillance databases maintained by the U.S. FDA provide vital baseline context for clinical engineers managing Voluson S-series fleets. Under 21 CFR 892.1550 (Product Code IYN), diagnostic ultrasound systems are regulated as Class II medical devices ¹. Transducers are separately classified under 21 CFR 892.1570 (Product Code ITX) ¹.

A bounded scan of the FDA recall extract (58,785 rows, export 2026-07-24) for Voluson S6, S8, and S10 in product description or reason found zero chassis-board actions ³. That substring result does not prove the absence of every host or accessory action. The exception that does appear in a broader Voluson scan is Z-0865-2024 (Class II Ongoing, event 93727, initiated 2023-12-22): GE Voluson IC9-RS intracavitary probes, model J48691PJ, double-image / ghost-image artifact ³. The recall record lists 510(k) K160184, which is also the 2016 Traditional clearance whose device_name first includes Voluson S10. That shared K-number is not a reason to condemn an S10 DRFM or beamformer for an IC9-RS ghost-image complaint.

Two manufacturer MAUDE reports that name a Voluson S8 console were reviewed by report number (openFDA device/event last_updated 2026-08-18): 9710090-2020-00001 (brand field VOLUSON S8 W/IC9-RS; Injury; manufacturer concluded neither system nor probe malfunctioned after an oocyte-retrieval visualization/use event) and 9710090-2021-00001 (brand field VOLUSON S8; Injury; field engineer cut on a cable-cover bracket during preventive maintenance; no system malfunction) ⁴. Quoted brand_name searches for Voluson S6 and Voluson S10, and quoted device.model_number searches for 5497712, 5364098, 5393431, 5722794-2, 7720005, and 5573638-2, returned no matching events. Passive-surveillance rows do not measure incidence, do not prove causality, and are not a chassis-board failure census.

Where Rongtao fits, and where it does not

Rongtao Medical provides specialized technical services and circuit board solutions designed specifically for hospital HTM departments, independent service organizations (ISOs), and international medical equipment distributors. To maintain professional clarity and regulatory alignment, we define exactly where our technical capabilities fit—and where they do not:

• Where Rongtao Fits:
• • Component-Level Circuit Board Repair: Component-level repair of CPS / DPSS power supplies, DRFM / RFS front-end boards, BF / DBM beamformers, and TI / DPI interface boards, with the identified assembly tested in a live chassis ⁵.
• • 48-Hour Real-Machine Testing: Every repaired board runs for 48 hours inside an actual ultrasound system before release ⁵.
• • Certified Quality Management: Repair workflows are operated under ISO 13485:2016 and ISO 9001:2015 quality systems ⁵.
• • Standard Turnaround: Typical board-repair turnaround is 5–8 business days with a typically 90-day warranty; final terms depend on item and service and are confirmed at quote ⁵.
• • Operator Console & Transducer Services: Full rotary encoder rebuilds (Case 014), trackball replacements, and specialized ultrasound probe repair including acoustic lens and motor rehabilitation.
• Where Rongtao Does Not Fit:
• • No OEM Impersonation: We do not claim to be GE HealthCare's authorized representative. OEM brand names identify system compatibility only ⁵.
• • No Software Piracy or Feature Cracking: We do not bypass software licensing, generate unauthorized option keys, or provide cracked software builds.
• • No Unqualified Field Instructions: We do not provide instructions for unqualified personnel to perform live probing on energized backplanes or bypass electrical safety interlocks.
• • No Speculative Board Swapping: We do not recommend blind board replacement without systematic symptom isolation and label verification.

Quote-ready handoff: What technical details are required for an exact quote?

To ensure immediate, accurate quotation and eliminate shipping delays or wrong-revision dispatch, please assemble the following technical package when submitting a repair request or parts inquiry to Rongtao Medical Technical Support:

1. Exact Console Model & Hardware Release: Specify whether the system is a Voluson S6, S8, S8t, S10, or S10 Expert, and provide the software release version (e.g., BT16, BT17, BT18) from the system information screen.
2. Observed Symptom & Fault Progression: Detail the exact failure mode—for example total deadness, power-present black screen, splash/OS-load hang with any stop code, 2D black sector, vertical dropout after probe swap, single-port recognition loss, 4D sweep stall, or unresponsive rotary knobs.
3. High-Resolution Photos of the Board (Both Sides): Capture clear, well-lit photographs of both the component side and solder side of the removed circuit board.
4. Barcode & Revision Label Close-Ups: Photograph all white barcode labels, GE part numbers (e.g., 5497712-3, 5364098, 5393431-3, 8004401), serial numbers, and PCB silk-screen revision markings.
5. Pre-Fault Isolation Steps Completed: Note whether transducers have been swapped across ports, whether qualified service has confirmed rails-down versus power-present, and whether any error codes were logged.
6. Required Quantity & Delivery Destination: Specify the number of assemblies required for repair or exchange, and provide the destination country and postal code for bonded-zone express courier dispatch via DHL, FedEx, or UPS ⁵.

Frequently Asked Questions

Q: Is RFS 5364098 or DRFM 5497712 the motherboard I should order for a Voluson S8 or S10 that will not boot?
A: No. Marketplace and even some catalog titles call DRFM 5497712 and RFS 5364098 'Motherboard', but they are RF/front-end class. If fans or LEDs respond and the scanning UI never appears, start with the host CPU module (CPU 013170 on S6, CPU 7324556 on S8, SOM 6324556-2 on S10 archive), storage, or a collapsed DC rail—not DRFM. Use the host HDD/SSD vs motherboard path after rails are confirmed ^{5 6}.

Q: Will DBM128 5573638-2 from a Voluson S8 work in an S6, S10, or P8?
A: Do not treat it as a family-wide swap. Inventory labels 5573638-2 as VOLUSON S8. The S6 photo-backed beamformer row is BF64 5396937-2; S10 inventory uses DBM128G 5773602. Shared P8/S6/S8 DBM64 5573639-2 is a different catalog PN. Match the PCB label and dash revision ^{5 7}.

Q: Is GE Service Shop 7720005 the same part as catalog operation-panel board 7720003?
A: No. Catalog 7720003 is the Voluson S10 operation-panel main control board. GE Service Shop publicly titles 7720005 as Voluson S10 Opio Power Board. Adjacent digits are not a swap license; 7720005 is not a Rongtao catalog SKU ^{5 8}.

Q: The S10 is in a bootloop. Should I replace DPSS 8004401, the CPU, or the hard drive?
A: Separate rails-down from power-present first. If nothing happens at the power button, start with DPSS 8004401 (or the labeled CPS). If fans and LEDs respond but the scanning UI never appears or loops after splash, use the host HDD/SSD vs motherboard path rather than ordering DRFM or Opio 7720005. SOM 6324556-2 is the S10 host archive string, not a silent swap for DPSS ^{5 6}.

Q: Is a Voluson IC9-RS ghost-image recall a reason to condemn my S6/S8/S10 DRFM or BF board?
A: No. Z-0865-2024 is a Class II Ongoing IC9-RS probe action (ghost-image / double-image artifact, event 93727). The recall lists K160184, which is also the 2016 S6/S8/S10 510(k). That shared number does not convert a probe artifact into a chassis DRFM or beamformer condemnation ^{1 3}.

Q: What photos and information should I send to get a Voluson S-series board-repair quote?
A: Provide the exact console model and BT software version, a description of the observed symptom, high-resolution photographs of both sides of the removed circuit board, clear close-ups of all white barcode labels showing full GE part numbers and dash revisions, and your delivery destination country for courier dispatch ⁵.
