What do Samsung Medison BF, BE, AC, PSA, CW and DDM boards actually do?
Understanding Samsung Medison ultrasound system architecture requires looking beyond marketing designations (such as S-Vision, Crystal Architecture, or Hybrid Beamforming) to the physical printed circuit board assemblies (PCBAs) inside the console. Across premium cart platforms like the RS80A, RS85, and WS80A, portable units like the HM70A, and established lines such as the HS60 and SonoAce series, Samsung Medison employs a highly modular architecture that decouples acoustic pulse generation, digital signal processing, probe multiplexing, and computing host functions 1.

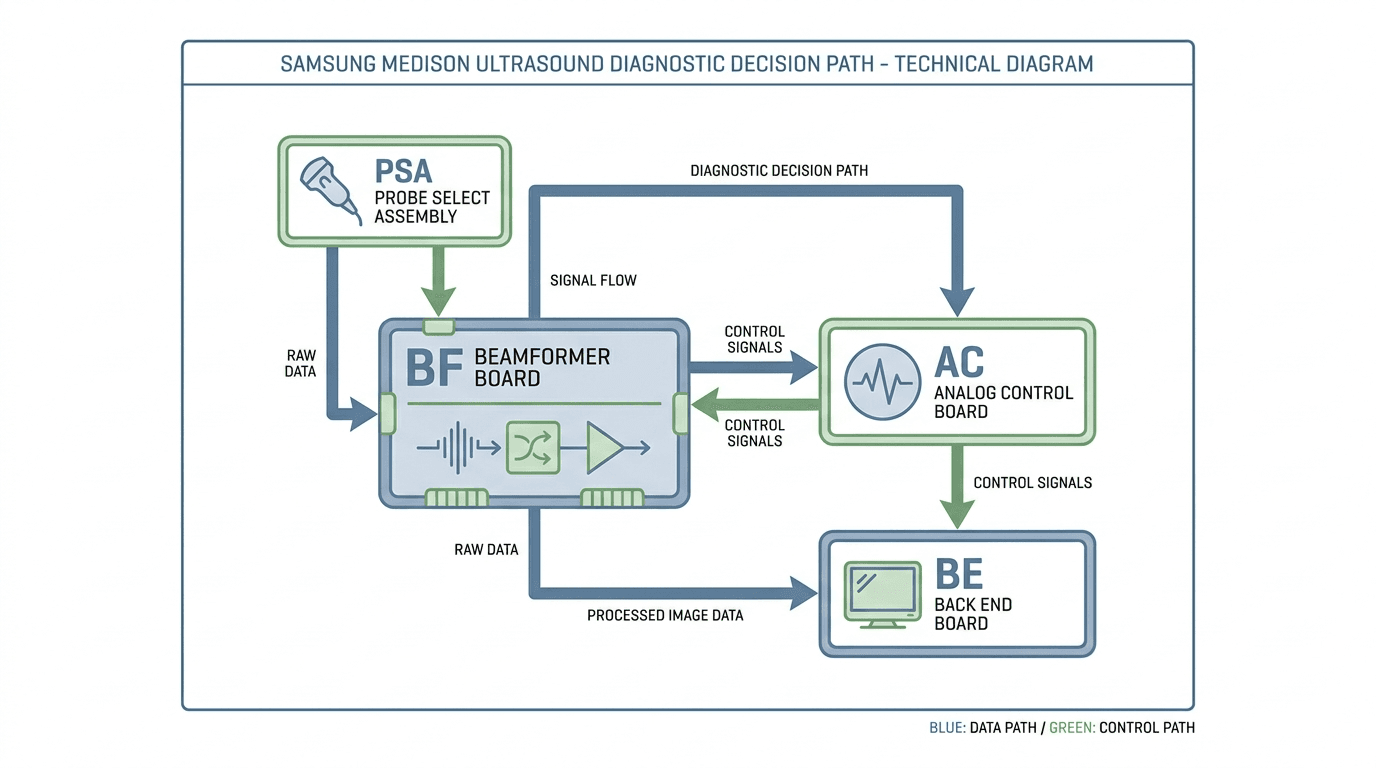

In major Samsung Medison cart systems such as the WS80A and RS80A, the internal card cage and sub-assemblies perform specialized electronic roles:
| Board Assembly | Abbreviation | Primary Electronic Function | Representative Part Numbers | Clinical Fault Impact |
|---|---|---|---|---|
| Beamformer Board Set | BF Board | Controls 192-channel acoustic pulse delays, transmit waveform firing, and multi-channel receive sum-of-products processing. | MI9201712 (RS80A), MI9202583 (RS85), SP01196 (HS60), SP01515 (RS85), BD-332-BF (SA-9900) | Acoustic image signal loss, horizontal channel dropouts, weak penetration, or Error Code 40. |
| Back End Board | BE Board | Executes digital signal processing, B-mode image reconstruction, Doppler FFT filtering, scan conversion, and video frame buffer output. | MI9201711 (RS80A), MI92-01324A (X8), 349-02-BE-5 (SonoAce X6), BD-349-BE (X6) | Complete 2D image blackout, PW/Color Doppler calculation loss, display artifacting, or Error Code 100. |
| Analog Control Board | AC Board | Regulates high-voltage (HV) transmit power rails, Time Gain Compensation (TGC) amplification, and analog front-end switching. | MI9601345A (WS80A), MI9601299B (SamsungMedison), AC Part on Main Board | Vertical line noise in B-mode, high-voltage drop, acoustic intensity attenuation, or Error Codes 21–25 / 163. |
| Probe Select Assembly | PSA Board | Multiplexes high-density transducer connections across active probe ports (3 or 4 ports) to the beamformer backplane. | MI92-02567AC (RS85), 349C-PSA-3P (X6), WS80A 4-Port PSA Assembly | Probe port non-detection, single port transducer signal loss, or cross-port relay switching noise. |
| Embedded PC Module | PC Module / Host | Com-Express computer module (Intel Core i7-3635QM, DDR3 8GB, Windows 7 Embedded, SSD) running system operating software and user interface. | AY-357-PC (XG), WS80A PC Com-Express Module, Motherboard MI9202587A (HM70A) | Console deadness, freeze on Samsung logo during boot, Windows OS kernel corruption, or Error Code 10. |
| Dynamic Power Drive Unit | DDM / Power Board | Provides high-voltage power regulation and motor control drive for 3D/4D volumetric transducers and auxiliary power rails. | AY-342-PWR-DDM (X6/X4), RS85 Main Power Unit, WS80A ADM/DDM Power Path | Total power-up failure, spontaneous thermal shutdown, 4D motor initialization error, or probe acoustic vibration. |
| Continuous Wave Board | CW Board | Processes continuous-wave Doppler analog quadrature demodulation for cardiac and vascular high-velocity flow analysis. | 327-02-023-1 (SA-6000C), 336-02 (SA-8000), BD-332-CW (SA-9900) | Loss of CW Doppler spectral display while PW Doppler and color flow operate normally. |
Source: Samsung Medison WS80A Service Manual system architecture records cross-referenced with Rongtao Medical catalog ground truth
This modular breakdown illustrates why swapping parts at random is inefficient. A total loss of ultrasound image on an RS80A or WS80A can stem from a blown high-voltage rail on the AC Board, a corrupted beamformer timing sequence on the BF Board, a digital processing freeze on the BE Board, or a DC voltage collapse in the DDM power assembly. Biomedical engineers should cross-link their diagnostic steps with established ultrasound board failure patterns observed across major multi-brand equipment fleets.
Which board is likely failing for no-power, boot-loop or boot-error symptoms?
Console power and boot failures are among the most urgent service tickets logged by hospital biomedical departments and independent service organizations. The official Samsung Medison WS80A Service Manual (Chapter 7 Troubleshooting) provides specific diagnostic decision steps for power-path failure modes 1:
- Symptom Mode 1: Console Power Does Not Turn Off After Pressing Switch: If holding the front-panel power switch fails to initiate soft shutdown and the console remains energized, the OEM decision path isolates the failure to either the PC Module or the BE (Back End) board. The PC host fails to signal the AC/DC power controller to drop the latching relay.
- Symptom Mode 2: System Power Turns Off Spontaneously During Boot or Scan: If the unit boots briefly and then shuts off completely, the OEM troubleshooting path directs technicians to inspect four specific sub-assemblies: (1) PC Motherboard power regulation, (2) PCI Interface Board, (3) DVI Output Board, or (4) LCD Interface Board. Spontaneous thermal or over-current tripping on any of these sub-boards breaks the main power interlock loop.
- Symptom Mode 3: Console Stuck on Samsung Medison Boot Screen (Boot Loop): If power remains stable but the system hangs continuously at the startup splash screen, the failure is concentrated in the PC Com-Express module (corrupted Windows 7 Embedded OS or failing 512GB SSD) or the BE Board communication interface (Error Code 10 or 15).
- Symptom Mode 4: Total Console Deadness (No LED Illumination, No Fans): When pressing the power button yields zero reaction, verify AC mains input and circuit breaker trips before measuring the DC standby voltage rail (+5VSB) from the main AC/DC power supply assembly. If standby voltage is present, the failure lies in the soft-start logic on the Main Board or PC Module.
WARNING: Samsung Medison service manuals restrict internal equipment repair and high-voltage module servicing strictly to qualified technical personnel. Internal power supply modules and AC control boards operate under dangerous electrical potentials capable of causing electrocution. Unqualified personnel must never disassemble energized consoles or defeat interlock safety controls.— Samsung Medison WS80A & SonoAce X8 Service Safety Bulletins
For biomedical engineering teams managing power supply failures, refer to our detailed technical analysis on ultrasound power supply failure, no-power, and boot-loop isolation. When isolating multi-brand fleet issues, compare Samsung's power behavior against GE ultrasound board symptom decision paths and Philips ultrasound board symptom decision paths.
Which board is likely failing for 2D image loss, lines/noise or Doppler/color loss?
When console power is normal but clinical image quality degrades, isolating the fault domain requires mapping the specific visual or acoustic defect to the corresponding signal processing block. The OEM service manuals for the WS80A and SonoAce X8 define clear symptom-to-board relationships 1 2:
- 2D Blackout with Probe Vibration Sound: On systems like the WS80A or RS80A, if B-mode shows zero echo data while the transducer emits an audible or tactile vibrating sound, the OEM decision path isolates the failure to the DDM (Dynamic Drive Module). If 2D image is lost without probe vibration, the failure stems from the Main Board / BE Board.
- Vertical Lines or Interference Noise in 2D Mode: Severe line noise or pattern distortion across the sector image can stem from external AC power line noise or internal AC Analog Control board ripple. Switching mains outlets isolates external noise; persistent internal noise indicates AC Board HV filtering failure or BF Board line driver degradation.
- Pulsed Wave (PW) Doppler Failure with Normal B-Mode: As documented in the SonoAce X8 service manual (Section 7.5.4), if 2D grayscale image quality is perfectly clear but engaging PW Doppler results in static, frozen spectrum, or zero audio, the suspect domain is the Back End (BE) Board.
- B-Mode Failure with Normal Doppler: Conversely, if Doppler modes function but 2D grayscale image cannot be generated, the failure points directly to the Beamformer (BF) Board set.
- Continuous Wave (CW) Doppler Failure with Normal PW Doppler: As detailed in Section 7.5.5 of the X8 manual, if PW Doppler and 2D mode operate cleanly but CW Doppler mode produces no signal, the failure isolates specifically to the dedicated CW Board or CW processing sub-circuit.
To assist field service technicians, the table below maps observed clinical symptoms across key Samsung Medison models directly to suspect board domains and verified repository part numbers:
| Samsung Model | Clinical Symptom Observed | Likely Board Domain | OEM Board Designation | Verified Repository Part Number |
|---|---|---|---|---|
| RS80A | Acoustic channel dropout, 2D penetration loss, horizontal signal lines | Beamformer Array | BF Board (192-Channel) | MI9201712 / MI92-01712D (Catalog & Inventory ID) |
| RS80A | Image processing freeze, digital reconstruction blackout, boot hang | Digital Back End | BE Board Assembly | MI9201711 / MI92-01711 (Catalog & Inventory ID) |
| RS85 | 2D/Doppler image loss, signal noise, multi-channel beamformer fault | Beamformer Array | BF Board Assembly | MI9202583 / SP01515 (Catalog & Inventory ID) |
| RS85 | Control panel communication loss, soft-key command failure | Console Control | CONT Board Assembly | MI9202558A (Catalog ID samsungmedison-rs85-cont-board) |
| RS85 | Probe port switching failure, transducer non-detection across ports | Probe Selection | PSA Board Assembly | MI92-02567AC (Inventory ID MI92-02567AC) |
| RS85 | Auxiliary video output drop, external monitor communication loss | I/O Sub-system | IO Board Assembly | MI9202567 (Catalog ID samsungmedison-rs85-io-board) |
| WS80A | TGC gain loss, acoustic power attenuation, HV line noise | Analog Control | AC Board Assembly | MI9601345A (Catalog ID samsungmedison-ws80a-ac) |
| HM70A / EVO | System startup freeze on boot logo, portable console boot loop | System Host | Motherboard Assembly | MI9202587A (Catalog ID samsungmedison-hm70a-motherboard) |
| HS60 | Channel loss, acoustic line distortion, transmit delay error | Beamformer Array | BF Board Assembly | SP01196 (Inventory ID SP01196) |
| UGEO H60 | Transmit/receive signal degradation across array elements | Transceiver Array | TR192 Board Assembly | MI9201643 (Catalog ID samsungmedison-h60-tr192) |
| SonoAce X6 | 2D image blackout, scan converter reconstruction failure | Digital Back End | BE Board Assembly | 349-02-BE-5 / BD-349-BE (Catalog & Inventory ID) |
| SonoAce X8 | PW Doppler processing failure, spectral calculation loss | Digital Back End | BE Board Assembly | MI92-01324A (Inventory ID MI92-01324A) |
Source: Verified Samsung Medison catalog and inventory rows cross-referenced with OEM service manual diagnostic logic
When cross-referencing Asian OEM platforms, compare these Samsung Medison diagnostic paths with our guides on Mindray DC and Resona board symptom decision paths, Toshiba/Canon Aplio board symptom decision paths, and Hitachi Fujifilm Aloka board symptom decision paths.
How do I read Samsung Medison error codes to localize the failing board?
Samsung Medison diagnostic software logs explicit numeric error codes when hardware self-tests detect out-of-tolerance communication or voltage states. The WS80A Service Manual (Chapter 7 Error Code Table) establishes a direct mapping between on-screen error codes and suspect physical board assemblies 1:
| Error Code Displayed | OEM Fault Location / Description | Primary Suspect Hardware Assembly | Recommended Field Action |
|---|---|---|---|
| Error Code 10 | PC Module / MAIN Board (boot or interface handshake fault) | PC Com-Express Module or MAIN Board | Document the code and system log; follow the OEM Chapter 7 procedure; suspect the PC Module or MAIN Board before any part swap. |
| Error Code 15 | MAIN Board (BE & OS) — PC interface init interrupt (PC_INTERFACE_INIT_INTERRUPT_FAIL) | Back End (BE) Board / OS software interface | Recover or reload system software per the OEM procedure; if the code persists after software recovery, suspect the BE / MAIN Board. |
| Error Code 21 | MAIN Board (AC part) — No motor control found (NO_MOTOR_CONTROL_FOUND) | Analog Control (AC) / 3D motor-drive path on the MAIN Board | Check the 3D motor-drive cable and connector; follow OEM Chapter 7; suspect the AC part of the MAIN Board if the fault recurs. |
| Error Code 22 | MAIN Board (AC part) — Motor null position lost (MOTOR_NULL_POSITION_LOST) | Analog Control (AC) / motor-position path on the MAIN Board | Verify the motor position-sensor and drive path; route to qualified service per the OEM manual if it recurs. |
| Error Code 23–25 | MAIN Board (AC part) — Motor control sequence broken / GAIAMOT DLL load error (MOTOR_CONTROL_SEQUENCE_BROKEN, GAIAMOT_DLL_LOAD_ERROR, GAIAMOT_DLL_OLD_LOAD_ERROR) | Analog Control (AC) part of the MAIN Board | Reload the motor-control firmware/DLL per the OEM procedure; if unresolved, suspect the AC part of the MAIN Board. |
| Error Code 40 | BF Board — FPGA download error (FPGA_DOWNLOAD_ERROR_BF) | Beamformer (BF) Board Set (192-channel) | Reseat the BF boards in the card cage and re-test; if the BF FPGA image will not load, suspect the BF Board (e.g. MI9201712). |
| Error Code 100 | MAIN Board (BE part) — FPGA download error (FPGA_DOWNLOAD_ERROR_BE) | Back End (BE) Board sub-assembly | Recover system software; if the BE FPGA image will not load, suspect the BE Board (e.g. MI9201711 for RS80A / MI92-01324A for X8). |
| Error Code 163 | MAIN Board (AC part) — BF DMA write checksum error (BF_DMA_WRITE_CHECKSUM_ERROR) | Analog Control (AC) / BF DMA path on the MAIN Board | Follow OEM Chapter 7; inspect the BF-to-MAIN Board DMA path; suspect the AC part of the MAIN Board if it persists. |
| Error Code 162 | DDM / BF Board — HV high (HV_HIGH) | DDM power unit / BF Board high-voltage path | Stop scanning and document the code; route to qualified service — this is a high-voltage fault, so do not continue energized operation. |
Source: Samsung Medison WS80A Service Manual Chapter 7 Error Code Table
When an error code appears, technicians should document the exact numeric string, capture high-resolution photos of the error dialog box, and record system log files before clearing errors or restarting the console. Always verify the board part number against the physical barcode sticker before requesting replacement parts. For complete procedures on receiving and validating replacement boards, review our guide on how to verify an ultrasound board part number and manage acceptance testing.
