GE LOGIQ S7/S8 Board Repair by Symptom, Generation, and Part Number: BF192 vs GBF128, GFS Motherboard, CPS Power, TI and Control Panel — A Decision Path Across R1–R4

Which LOGIQ S7/S8 board domain does my symptom point to?

The GE LOGIQ S-series — comprising the LOGIQ S8 (first cleared under FDA 510(k) K111582 in July 2011) and the LOGIQ S7 Expert / Pro (first cleared under K122114 in October 2012) ¹ — sits between portable point-of-care units and premium flagship consoles such as the GE LOGIQ E9/E10/E11 family and portable LOGIQ P-series systems. For brand-wide GE routing before this S-family map, start with the brand-level GE board decision path. On S7/S8, the assemblies that show up in catalog, inventory, and archive records are a high-density digital beamformer (BF192 on S8; GBF128 on S7), a GFS motherboard, a compact CPS power supply, a transducer interface (TI) assembly, and an operator console with touch screen and keyboard ^{5 6}.

When a LOGIQ S7 or S8 console malfunctions in clinical practice, symptoms often present with misleading ambiguity. A blank monitor can be caused by a tripped power supply, a failed GFS motherboard, or an unseated beamformer holding the system bus in reset. Similarly, color Doppler artifacts can stem from probe element burnout, RF interference, or front-end transceiver failure. To avoid replacing functional boards, service engineers must classify the observed failure into one of five primary hardware domains:

• Acoustic Beamforming Domain (BF192 on LOGIQ S8; GBF128 / GBF128II on LOGIQ S7): Handles multichannel transmit/receive and color-flow processing. Failures in this domain present as color-flow interference with clear 2D (documented S8 record after probe isolation), fixed image dropouts across multiple probes, or loss of echo return while UI graphics remain intact ^{5 6}.
• Digital Back-End & Processing Domain (GFS Motherboard & COM Express Module): Hosts system software, cine memory, scan conversion, DICOM, and video output. Failures present as boot hangs, OS crashes, unrecoverable system errors, video blanking after initial power-on, or communication timeouts with front-end subsystems ^{4 6}.
• Power Conversion & Distribution Domain (CPS Power Supply & Distribution Harness): Converts AC mains into regulated DC rails for digital processors and high-voltage supplies for the acoustic front-end. Failures present as total startup failure, standby lockout, spontaneous reboot under high-output modes, or missing rails causing image blackout ^{5 6}.
• Transducer Interfacing Domain (TI Board / DC4D Board): Houses probe connector receptacles, probe identification, and — on S7 inventory labels — 4D motor-drive circuitry (DC4D 5372959) ⁵. Failures present as probe recognition failure on specific ports, 4D sweep stall, or port-specific channel noise.
• User Interface & Operator Console Domain (Control Panel, Touch Screen, Trackball, TGC): Scans the key matrix, rotary encoders, TGC sliders (ND1190-0814-001-003), optical trackballs (7710010-2 / 7710010-3 / S9554921 / S9554922), and multi-touch LCD (8810002 / 8910004-2) ⁵. Failures present as unresponsive knobs, frozen touch, erratic trackball, or boot delays from console communications.

Color-flow interference with good 2D: probe first, then BF192 — a documented S8 case

One of the most frequent and puzzling presentations on the GE LOGIQ S8 is color-flow interference — snow, flash bands, or background Doppler noise — while grayscale 2D remains diagnostic. In a documented Rongtao technical record (GE Logiq S8 image interference, 2023-02-27) ⁶, a LOGIQ S8 had a normal 2D image with obvious interference in the color-flow image. That record is a historical technical note, not a success-rate study.

Because 2D was intact, a probe defect is the first thing to rule out. The archive record followed a short isolation sequence:

1. Connector and probe-swap gate: The probe was tried in different connectors on the suspect S8; the interference remained. The same probe was then used on another machine and behaved normally, so the record ruled out the transducer and isolated the fault to the console ⁶.
2. Front-end isolation: With the probe cleared, the record judged the BF192 board faulty ⁶. It does not document a replacement outcome. Treat that as a routing hypothesis: after probe isolation, order or repair the labeled S8 BF192 (5357234 / 6357234), not an S7 GBF128 ⁵. On an S7 with the same probe-isolated pattern, the analog board is GBF128 (5392446 / 5392446-3 / 5392446-4) — that S7 path is by architecture, not a second documented case.

Why 2D can remain clear while color flow fails is a front-end partitioning question, not a remote diagnosis: Doppler processing can fail without collapsing B-mode. Do not treat that physics sketch as proof of a specific capacitor or ADC on any one board. Isolate the probe first, then match the labeled beamformer. Cross-brand front-end patterns are in ultrasound beamformer and front-end board failure modes.

Power LED but no video: CPS/PSU, GFS, or BF seating — a documented S8 case

A complete boot failure where the power light comes on but the display shows no signal is a classic no-video emergency. In a documented LOGIQ S8 technical case (The GE LOGIQ S8 fails to start, 2022-01-04) ⁶, that is exactly what the archive records: startup light on, no signal, machine would not start normally.

The bench sequence in that record is the lesson — and it is not "replace GFS first":

1. Step 1 — Power supply: After a CPS / power-supply swap, the machine could start, but the system still reported an error on each startup ⁶. Catalog/inventory CPS numbers in circulation include 6626600, 5413249-3, and 6003003 — match the label on the removed unit ⁵.
2. Step 2 — Motherboard: A motherboard swap still left a startup error. GFS numbers in circulation include 5371196, 5371196-2, 5455247, and R4 7471196; the GE store lists 5371196-2 for Logiq S7 ^{4 6}. The original motherboard was not the residual fault.
3. Step 3 — Beamformer seating: Unplugging and reseating the BF board cleared the remaining fault. The recorded outcome is power-supply replacement plus BF remove-and-insert, after which the machine was in normal use ⁶.

Do not read that record as "GFS is never the problem." It shows that no-video-with-power can survive a PSU swap and a motherboard swap if the beamformer is unseated. Reseat and inspect BF before condemning GFS. For the wider no-power/boot-loop framework, see ultrasound power supply failure and boot-loop analysis.

2D and flow abnormal plus a dead flow knob: BF and control panel together, not one board

Technicians often search for one failed component that explains every defect. On this family the archive records a compound pattern instead. Two migrated maintenance entries — 2D image and blood flow abnormal and BF and control panel failure — describe the same clinical picture twice, not two independent success-rate events: 2D and blood flow both abnormal, and the blood-flow knob not working or not sensitive ⁶.

A dead flow knob is not automatically a software glitch from the image-path fault, and a bad panel is not automatically failing to command color transmit. The two records treated the image path and the knob as separate repairs:

• Image-path defect: Both records suspected the BF channel board because 2D and flow were abnormal, then replaced the BF board. After BF replacement, the image path returned to normal ⁶. Match the labeled S8 BF192 (5357234 / 6357234); do not order S7 GBF128 from the family name ⁵.
• User-interface defect: The blood-flow knob remained insensitive, so the control panel was opened and the circuit board for the blood-flow button was repaired or replaced. Catalog S8 panel assemblies in circulation include 6020703 and 5408671-26020700-30 — match the label rather than assuming one panel SKU ⁵.
• Recorded outcome: After BF replacement plus blood-flow-button board repair, both image and knob function were restored. Treat this as one historical pattern documented twice, not as two independent incidence events ⁶.

When 2D/flow and a dead flow knob appear together, do not assume one board explains both. Confirm knob/encoder behavior independently of the image path before ordering a single assembly. Control-panel patterns are in ultrasound control panel and touch display failure modes.

Boot or configuration loss: CMOS battery as a cheap gate before condemning GFS

A frequent failure mode on independent biomedical forums (r/BMET CMOS-battery thread) ⁸ and in the 2026-08-23 SERP AI Overview ⁷ is an S8 that will not boot past the splash screen, loses clock and presets after mains disconnection, or hangs with a BIOS checksum error. This is public BMET practice, not a Rongtao documented case. Do not condemn GFS until qualified service has checked the CMOS coin cell.

The GFS assembly uses a lithium coin cell to hold real-time clock and CMOS settings when the cart is unplugged. When that cell is exhausted:

1. The BIOS can lose peripheral configuration and boot priority.
2. The system may halt at BIOS setup or loop in POST before loading application software.
3. Timestamps can revert, causing DICOM export or license-validation errors.

Qualified biomedical personnel should treat CMOS replacement as a cheap gate before authorizing a GFS or COM Express swap: measure and replace the cell if depleted, restore BIOS defaults, and confirm that configuration survives a power cycle ⁸. Unqualified readers should not open the electronics bay or work on energized equipment. If the system then boots and retains settings, GFS is not the first board to condemn.

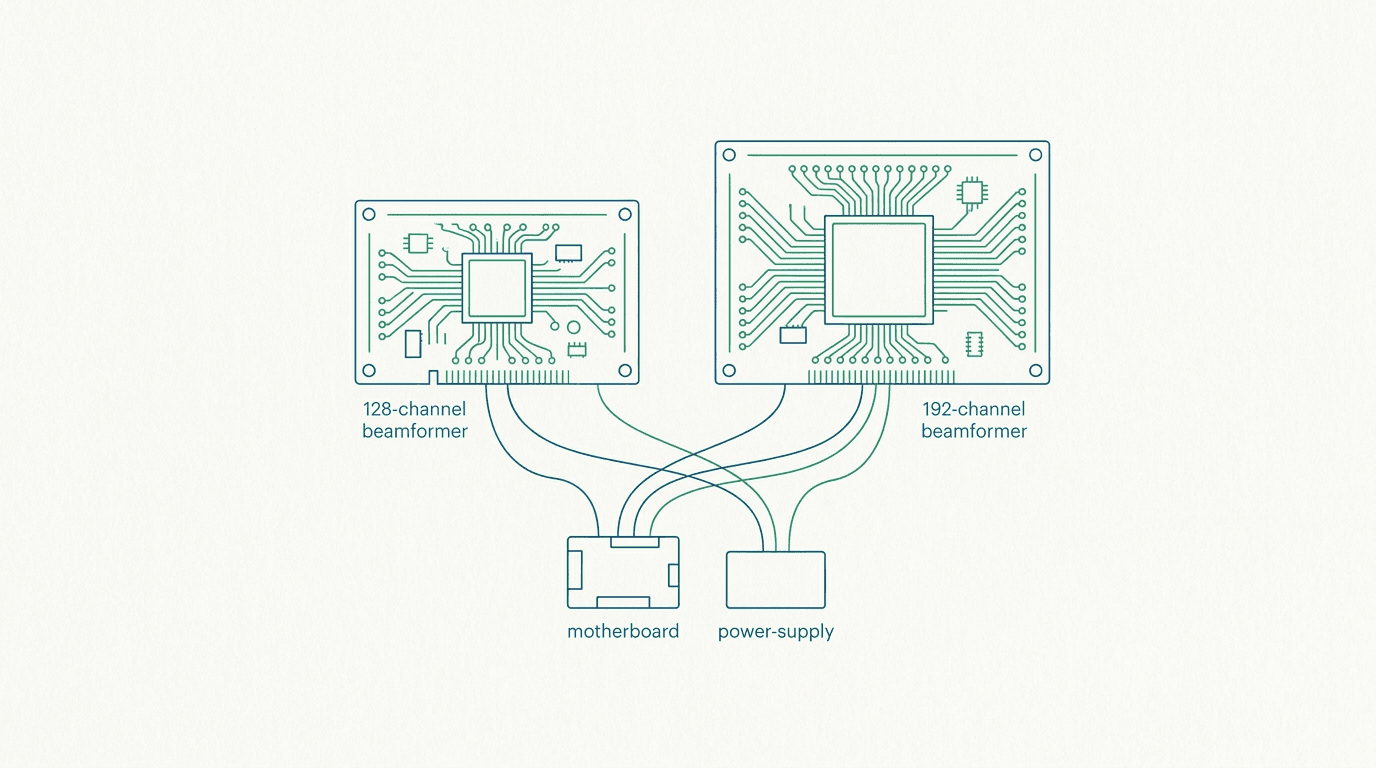

S7 versus S8: GBF128 versus BF192, and why channel-count context is not a swap license

Because the GE LOGIQ S7 and LOGIQ S8 share an identical exterior cart profile, monitor articulating arm, and user interface layout, many parts procurement managers and field service technicians assume that their internal circuit boards are 100% interchangeable. This assumption is a dangerous and expensive error, particularly within the acoustic beamforming subsystem.

The architectural boundary between the two systems is explicitly documented in official regulatory filings. In a manufacturer follow-up report submitted under the FDA MAUDE system (report number 9710090-2013-00001) ³, GE Healthcare documented the exact technical distinction between the two platforms: the LOGIQ S7 platform utilizes a 128/64 channel beamformer architecture, whereas the LOGIQ S8 platform incorporates a full 192-channel beamformer architecture, with other system features virtually identical ³.

• LOGIQ S8 Front-End: Documented as the BF192 beamformer (5357234 / 6357234) in catalog/inventory ⁵. Archive notes also list 5357234-20 on R1/R2 labels ⁶.
• LOGIQ S7 Front-End: Documented as the GBF128 / GBF128II channel board (5392446 / 5392446-3 / 5392446-4) ⁵.
• Interchangeability: Do not order an S7 GBF128 into an S8 BF192 slot, or the reverse, from the cart badge. Channel count is generation context, not a swap license. Some legacy product-note titles list 5392446 against both S7 and S8; those titles are not an OEM revision matrix ⁶. Match the physical board label. A cross-swap has not been demonstrated in repository evidence and should be treated as a hard stop.

Which part number is my board? R1/R2 5357234 versus R3/R4 6357234, GFS and CPS variants

Across the operational lifespan of the GE LOGIQ S-series, GE Healthcare released multiple hardware revisions designated R1, R2, R3, and R4. Within each major revision, internal circuit boards underwent engineering updates, component obsolescence replacements, and PCB layer redesigns. A critical rule for biomedical service teams is that numerical order is not a universal revision sequence: multiple distinct part numbers circulate for the same functional board domain, and parts must be matched against physical PCB barcode labels ^{4 5 6}.

Based on Rongtao Medical's verified parts catalog (13 photo-backed SKUs), inventory snapshot (12 stock rows across 9 distinct part numbers), and technical archive specifications (21 legacy specification bodies) ^{5 6}, Table 3 compiles the part-number registry across major LOGIQ S7 and S8 domains. Stock turns — confirm live availability on the catalog or in a quote.

When ordering replacement boards, service engineers should follow our standardized protocol for ultrasound board part number verification and acceptance testing: photograph the barcode sticker on both sides of the removed PCB, verify the full numeric suffix, and confirm whether the console operates on software revision R1/R2 versus R3/R4.

Could it be software or a probe instead? Three FDA recall rule-outs that mimic board failure

Before condemning a costly circuit board or issuing a purchase order for a replacement assembly, clinical engineering teams must establish that the observed malfunction is not a documented software algorithm flaw or an acoustic transducer interaction. The U.S. FDA Medical Device Recall Database documents three terminated Class 2 recall actions covering the GE LOGIQ S7 and S8 platforms that perfectly mimic electronic hardware failures ²:

• 1. Wrong-patient image / title display on LOGIQ S8 R1.1.0 (FDA Recall Z-1093-2012, initiated 2012-02-07, terminated 2012-07-06): On LOGIQ S8 systems with R1.1.0 software, users could see an image from a different patient, or the current patient's image with another patient's title information ². FDA determined cause: software design. That is not video-RAM failure on GFS. Resolve with the manufacturer software correction, not a motherboard swap.
• 2. Virtual Convex PW/TIC/depth measurement discrepancy (FDA Recall Z-1944-2013): On LOGIQ S8 (510(k) K111582), users could see incorrect Pulsed Wave (PW), Time Intensity Curve (TIC), or depth measurements in Virtual Convex mode ². That is not by itself BF192 clock jitter. The correction is the official software action, not hardware replacement.
• 3. S4-10-D sector probe acoustic and thermal over-output (FDA Recall Z-1096-2013 and MAUDE 9710090-2012-00004): On LOGIQ S8 (R1.1.1 / R1.5.1) and LOGIQ S7 (R1.0.1 / R1.0.2 / R1.0.3) with the S4-10-D probe, selecting flow model in cardiac color-flow or pulsed Doppler could raise probe surface temperature and acoustic output above specification ^{2 3}. A hot S4-10-D in cardiac flow is a recall/software gate before condemning CPS or beamformer high-voltage rails.

In addition to these recall conditions, a 2023 FDA MAUDE report (9710090-2023-00002) ³ documented a LOGIQ S8 power-cord plug that melted at a wall outlet. GE HealthCare reported that the damaged cord was OEM-supplied, replaced it, and found no problems on the system after safety testing. Passive-surveillance records do not establish incidence. Rule out the cord/outlet interface before condemning the internal CPS.

LOGIQ 7 is not LOGIQ S7, and LOGIQ S6 is not this family

A major hazard in multi-vendor ultrasound parts sourcing is search engine naming collisions. SERP analyses for "ge logiq s7 board repair" reveal prominent organic results for community repair guides describing the GE LOGIQ 7 ⁷. Procurement teams and junior technicians frequently order LOGIQ 7 parts under the mistaken belief that "LOGIQ 7" and "LOGIQ S7" are identical machines. They are completely incompatible architectures separated by a decade of engineering evolution:

• GE LOGIQ 7 vs GE LOGIQ S7: SERP results for "ge logiq s7 board repair" include iFixit stubs for the older LOGIQ 7, a different flagship platform from the early 2000s. The LOGIQ S7 (Expert / Pro) was cleared under 510(k) K122114 in 2012 ¹ and uses the GFS / GBF128 set documented here. Do not order LOGIQ 7 boards, power supplies, or panels into an S7.
• GE LOGIQ S6 vs GE LOGIQ S7/S8: Inventory labels a predecessor LOGIQ S6 DDBF128 board as 5182379-02 ⁵. That is not the S7 GBF128 (5392446-4) or S8 BF192 (5357234 / 6357234).
• Voluson S-series and Vivid S-series: Some mechanical accessories such as trackballs (S9554921 / S9554922) are catalog-tagged with Voluson P8 / Signature strings ⁵. That does not extend to beamformers. Never fold Voluson S6/S8/S10 or Vivid S60/S70 inventory into LOGIQ S7/S8 board claims without a matching PCB label.

For verified parts catalogs, engineers should browse our dedicated model resources: GE LOGIQ S7 parts and repair services and GE LOGIQ S8 parts and repair services, which maintain strict taxonomic separation from older legacy models.

Repair, tested replacement, or platform move: nine years after the 2017 final clearance

The 510(k) timeline in an August 2026 openFDA device-name query runs from LOGIQ S8 K111582 (26 July 2011) through K170445 on 11 April 2017 ¹ — the last LOGIQ S8 row in that scan. As of 2026 that is about nine years after the last clearance in the set. HTM directors still have to balance board repair against platform replacement; the clearance date is a fleet-age anchor, not a statement that GE has withdrawn support.

When an S7 or S8 console suffers a major board failure, clinical engineering teams face three strategic pathways:

• Option 1 — Component-level board repair (usual default after the gates above): For high-value assemblies such as BF192 (5357234 / 6357234), GBF128 (5392446-4), and CPS (6626600 / 5413249-3) ⁵, depot component-level repair restores the identified board to original specifications. Rongtao's typical terms are 5–8 business-day turnaround and typically 90-day warranty, with finals confirmed at quote ⁵. Do not treat historical product-note lead times or warranties as current offers.
• Option 2 — Tested exchange / harvested donor: When a board has substrate burn, delamination, or an unrepairable ASIC, a tested exchange is the faster recovery path. Donor boards should complete 48-hour real-machine testing on a LOGIQ S7 or S8 host before clinical return, as outlined in real-machine test evidence packs.
• Option 3 — Platform retirement: If several domains fail together (CPS, GFS, and mechanical arm, for example) and the clinical workload now requires capabilities this generation never had, retiring the console can be the rational path. Use board repair vs replacement as the economics framework — not a price quote.

Where Rongtao fits — and where it does not

To maintain transparent, professional relationships with medical equipment distributors, hospital HTM departments, and independent service organizations worldwide, Rongtao Medical clearly defines its operational capabilities and service boundaries:

• Where Rongtao Fits:
  • Component-level PCB repair: Depot diagnosis and component replacement on GE LOGIQ S7/S8 beamformers (BF192, GBF128), GFS motherboards, CPS power supplies, TI boards, and operator control panels.
  • Photo-verified parts inventory: 13 catalog SKUs and a 12-row inventory snapshot (9 distinct PNs) with typically 90-day warranty; stock turns, so confirm live availability via catalog or quote ⁵.
  • Real-machine validation: Repaired boards run 48-hour real-machine testing inside an actual ultrasound before release, with photo/video evidence where applicable.
  • Transducer repair: Probe lens, array, and cable work via ultrasound probe repair.
• Where Rongtao Does Not Fit:
  • No OEM representation: Rongtao Medical is an independent service organization and parts provider, not an authorized agent, distributor, or representative of GE HealthCare. OEM names identify compatibility and coverage only.
  • No on-site hospital field service: Centralized repair depots and parts distribution; no dispatched hospital field engineers.
  • No unqualified DIY guidance: No instructions for untrained personnel to service energized, high-voltage medical electronics or bypass safety interlocks.

Quote-ready handoff: photos, labels, symptom text, and R-level

To get an accurate first quote, clinical engineers should gather:

1. Exact Machine Badge & System Serial Number: Specify whether the system is a LOGIQ S7 Expert, LOGIQ S7 Pro, or LOGIQ S8, including the hardware revision level (R1, R2, R3, or R4).
2. High-Resolution Board Label Photographs: Provide clear photos of the paper barcode label and silk-screened PCB part number from both the front and back of the suspect board (e.g., BF192 5357234 vs 6357234; GFS 5371196-2; CPS 6626600 / 5413249-3) ⁵.
3. Detailed Symptom & Error Log Description: Document the exact failure behavior (e.g., 'power LED on with black screens', 'color Doppler snow with good 2D', 'BIOS clock reset'), any on-screen error dialogue codes, and the results of preliminary checks (probe swap, CMOS battery measurement, connector reseating).
4. Installed Software Version & Transducer Models: List the system software revision and the exact transducer models connected when the failure was observed (e.g., C1-5-D, 9L-D, S4-10-D, ML6-15-D).
5. Service Requirement & Destination: State whether you require component-level repair of your existing board, an outright tested replacement purchase, or advance exchange service, along with the destination country and postal code for expedited shipping.

When you have compiled these details, submit the request via the contact and quote request portal or browse verified SKUs in the GE LOGIQ S8 catalog. The triage team will review the photos and symptom notes and respond with a technical assessment, turnaround, and quote.

Frequently Asked Questions

Will a LOGIQ S7 GBF128 board work in my LOGIQ S8 (or the reverse)?

Do not order an S7 GBF128 / GBF128II (5392446 / 5392446-3 / 5392446-4) into an S8 BF192 slot (5357234 / 6357234), or the reverse, from the cart badge ⁵. A 2013 MAUDE manufacturer narrative (9710090-2013-00001) states that S7 has 128/64 channels and S8 has 192 channels, with other features virtually the same ³. That is generation context, not a swap license. Some archive product-note titles list 5392446 against both models; those titles are not an OEM matrix. Match the physical board label.

My S8 has color-flow noise but 2D looks fine — is that the probe or the BF192?

It can be either. Isolate the probe first ⁶. In the documented S8 record, the probe still interfered in different connectors on the suspect console but worked on another machine, so the note judged BF192 faulty. That record does not document a replacement outcome. If color-flow noise follows the console across probes, route to the labeled BF192 (5357234 / 6357234), not an S7 GBF128.

How do I tell BF192 5357234 from 6357234, and why does R-level matter?

Archive notes assign 5357234 (and 5357234-20) to R1/R2 LOGIQ S8 consoles and 6357234 to R3/R4 ^{5 6}. That mapping is from labels and product-note titles, not an OEM revision matrix. Numeric order is not a universal sequence. Photograph both sides of the barcode sticker and match the full suffix before ordering.

The system has power-on LED but no video — should I replace the GFS motherboard first?

No. In the documented no-start record, a power-supply swap let the machine start but errors remained; a motherboard swap still erred; unplugging and reseating the BF board cleared the residual fault ⁶. Check CPS rails (qualified service), reseat BF, and treat CMOS as a cheap GFS gate. Replace GFS only after those gates fail.

Is a wrong patient image or a Virtual Convex measurement error a board fault?

Not as a first assumption. Both are terminated FDA Class 2 software actions ². Wrong-patient image/title on LOGIQ S8 R1.1.0 is Z-1093-2012 (FDA determined cause: software design). Virtual Convex PW/TIC/depth error is Z-1944-2013. Replacing GFS or BF192 will not apply those corrections. Check software revision against the recall pages first.

My S7 or S8 with an S4-10-D feels hot in cardiac flow — is that a beamformer failure?

Not necessarily. Under FDA Recall Z-1096-2013 (and MAUDE 9710090-2012-00004), LOGIQ S8 (R1.1.1/R1.5.1) and LOGIQ S7 (R1.0.1–R1.0.3) could exceed surface-temperature and acoustic-output specifications with the S4-10-D in cardiac flow model ^{2 3}. Verify software revision and apply the manufacturer correction before suspecting beamformer high-voltage failure.

Is the LOGIQ S7/S8 still worth repairing in 2026 after the 2017 clearance?

Often yes, after the diagnostic gates in this article. The last LOGIQ S8 510(k) in the August 2026 device-name scan is K170445 (11 April 2017) ¹. Component-level repair of the identified board (typical 5–8 business-day turnaround, typically 90-day warranty, quote confirms finals ⁵) remains a rational alternative to platform replacement when a single domain has failed.

What photos and information should I send to get a quote for an S7/S8 board repair?

To get a rapid, accurate quote, provide: (1) machine model (LOGIQ S7 Expert/Pro vs S8) and hardware revision (R1–R4); (2) high-resolution photos of the white paper barcode sticker on both front and back of the PCB showing the full part number and revision suffix ⁵; (3) a clear description of the observed symptom, error dialogue codes, and diagnostic checks already performed; (4) connected probe models; and (5) your shipping destination address and preferred service type (repair vs tested exchange) via our quote portal.
